PHOENIX CONTACT 1202048

Not available

ME PLC 40 BUS COVER BK - DIN rail bus connectors

DIN rail connector, color: black

Product Code: 1202048 Copia - Copy

Copia - Copy

Partner cod.: 1202048 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: DIN rail connector
Dimensions	Width: 39.8 mm Height: 98.4 mm
Material specifications	Color: jet black RAL 9005 Flammability rating according to UL 94: V0 Insulating material: PA Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_10226.pdf

Other products

Description other products

PHOENIX CONTACT 1074935

EH 90 F-C SS/ABS-PC GY7035 - Upper part of housing
Cod. Articolo: 1074935

DIN rail housing, Upper housing part, flat design, connection opening on one side, connection opening on one side, width: 90.1 mm, height: 74.65 mm, depth: 36.95 mm, color: light grey (7035)

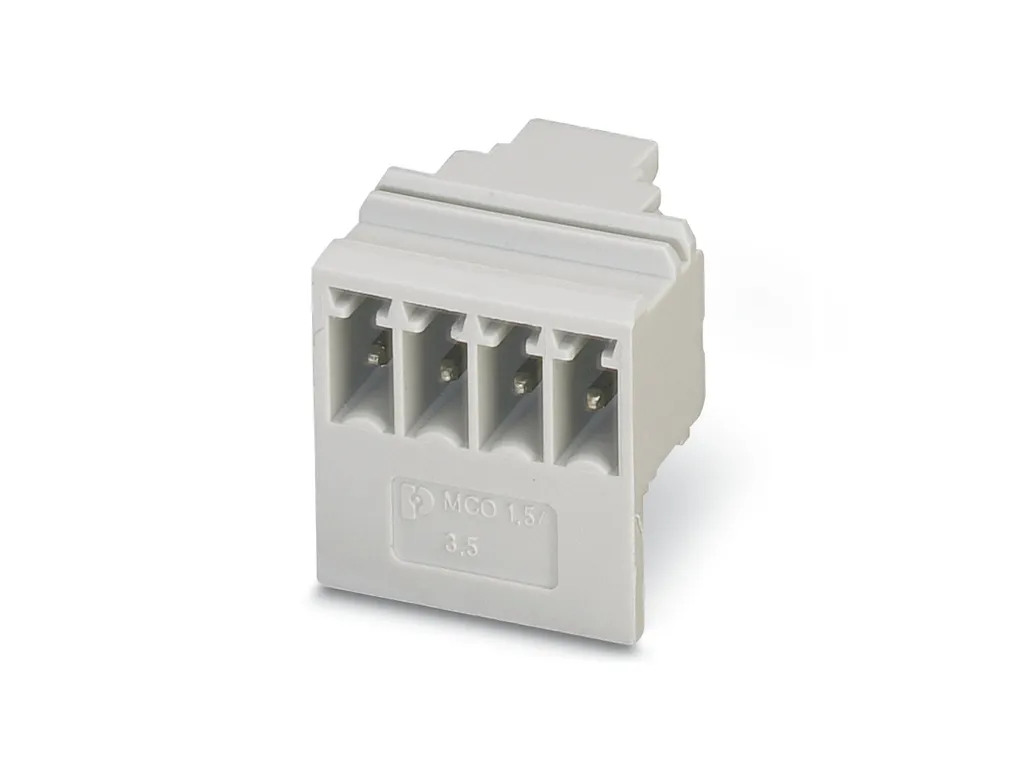

PHOENIX CONTACT 2278364

MCO 1,5/ 4-G1L-3,5 KMGY - PCB header
Cod. Articolo: 2278364

PCB headers, nominal cross section: 1.5 mm², color: light grey, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: MCO 1,5/..-G1L, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 2.75 mm, locking: without, type of packaging: packed in cardboard, Product with pin output on left side

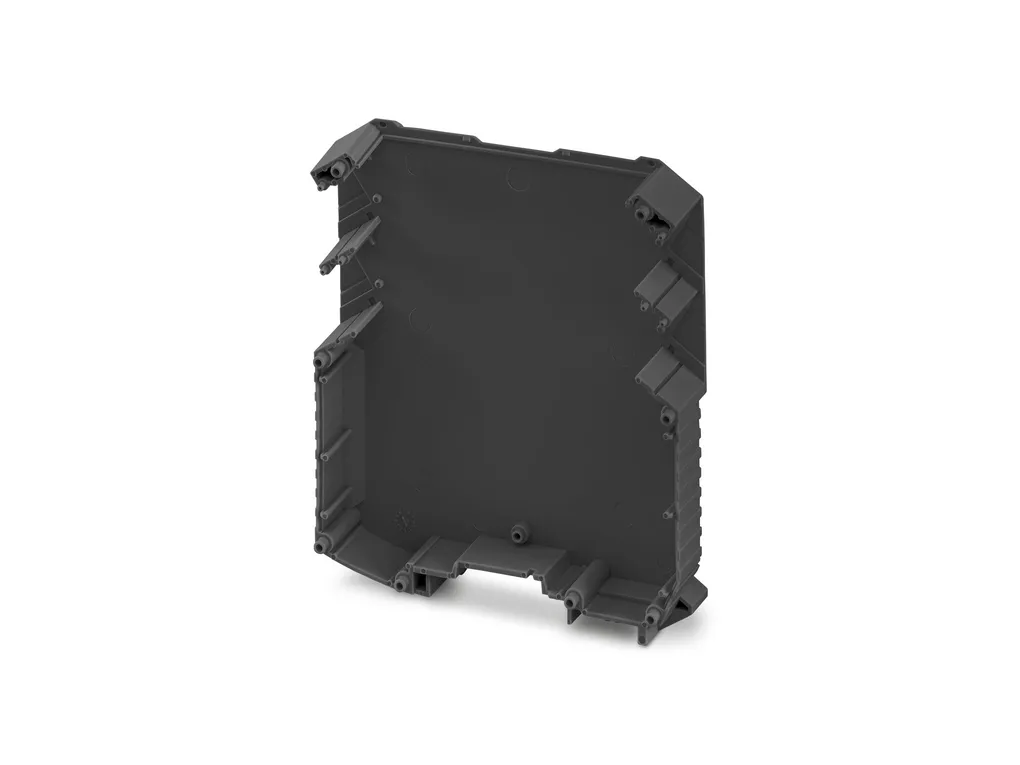

PHOENIX CONTACT 2202160

ME MAX 22,5 GEH-R G 2-2 BK - Housing half shell
Cod. Articolo: 2202160

DIN rail housing, Housing half shell (right), tall design, without vents, width: 16.3 mm, height: 99 mm, depth: 112.85 mm, color: black (9005), cross connection: DIN rail connector (optional)
