1205130 PHOENIX CONTACT - Technology Bsa

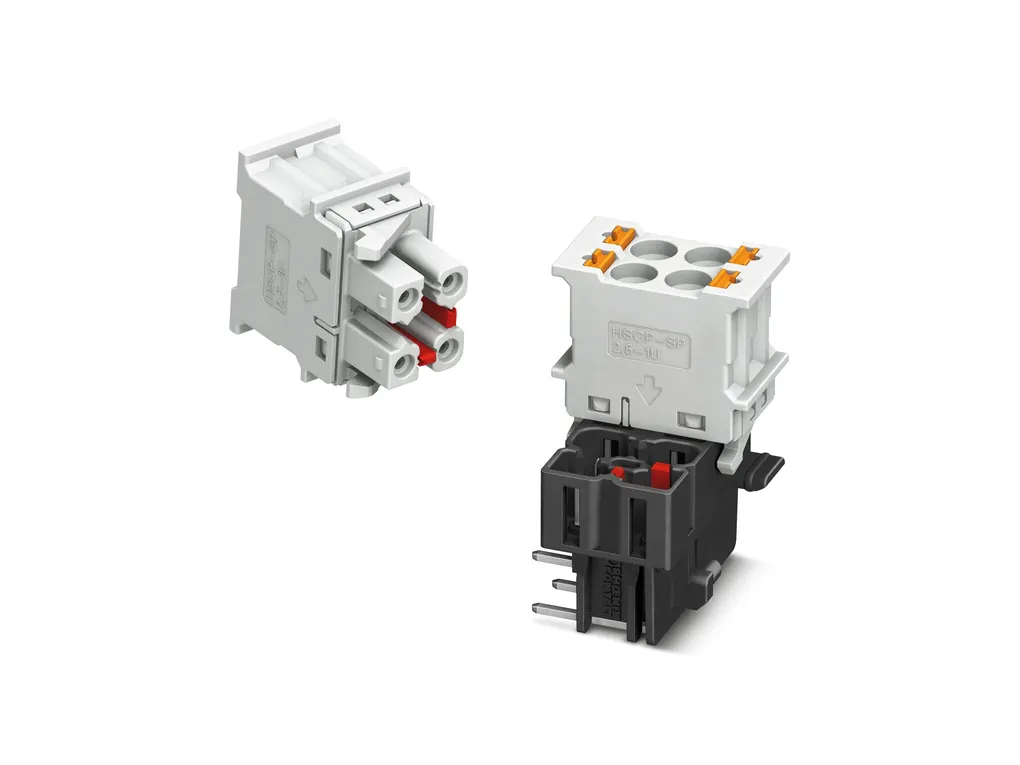

HSCP-SP 2,5-1U00-7016 - Filler plug

PCB connector, nominal cross section: 2.5 mm², color: anthracite gray, nominal current: 8 A, rated voltage (III/2): 300 V, number of potentials: 0, number of rows: 2, number of positions: 0, number of connections: 0, product range: HSCP-SP 2,5-.., pitch: 5 mm, number of solder pins per potential: 0, locking clip: - Locking clip, plug-in system: HSC 2,5, locking: without, mounting: without, Filler plugs

Product Code: 1205130

Partner cod.: 1205130

PHOENIX CONTACT

Product properties	Product type: PCB connector Product family: HSCP-SP 2,5-.. Number of positions: 0 Pitch: 5 mm Number of connections: 0 Number of rows: 2 Number of potentials: 0 Solder pins per potential: 0
Electrical properties	Nominal current I_N: 8 A Nominal voltage U_N: 300 V Degree of pollution: 3 Rated voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV Rated voltage (III/2): 300 V Rated surge voltage (III/2): 4 kV Rated voltage (II/2): 600 V Rated surge voltage (II/2): 4 kV
Connection data	Connection technology Connector system: HSC 2,5 Nominal cross section: 2.5 mm² Interlock Locking type: without Mounting flange: without Conductor connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² Cylindrical gauge a x b / diameter: 2.4mmx1.5mm / 1.9mm Stripping length: 10 mm
Material specifications	Material data - housing Color (Housing): anthracite grey (7016) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125°C
Dimensions	Pitch: 5 mm Width [w]: 18.8 mm Height [h]: 10.9 mm Length [l]: 21.6 mm
Mounting	Processing notes Moisture Sensitive Level: MSL 1 Classification temperature T_c: 260°C Solder cycles in the reflow: 3
Notes	Assembly instruction:: Refer to the data sheet for the range in the download area.
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 55°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Electrical tests	Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 3.2 mm Rated insulation voltage (III/2): 300 V Rated surge voltage (III/2): 4 kV minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 3 mm Rated insulation voltage (II/2): 600 V Rated surge voltage (II/2): 4 kV minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 3.2 mm
