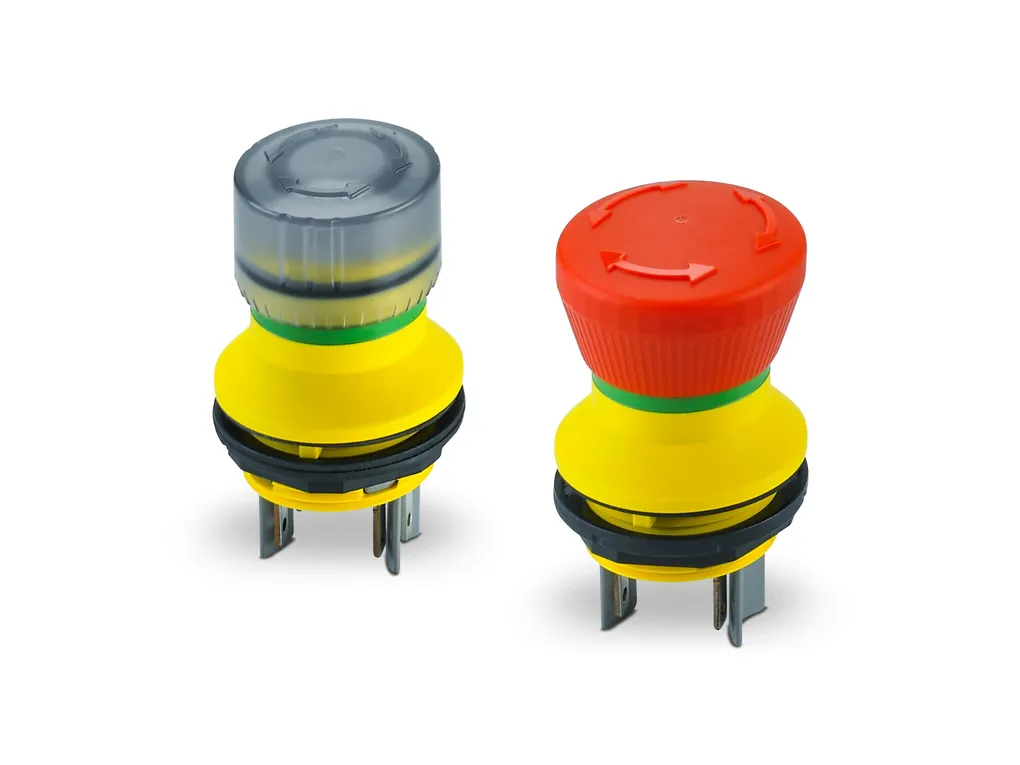

| Product properties | Product type: Emergency stop switch Insulation characteristics Overvoltage category: III Pollution degree: 3 |
| Electrical properties | Rated surge voltage: 2.5 kV |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/633762e89fe95149bbd89d6fd101c212/-S204x204-FJPG Depth: 44.1 mm Diameter: 28 mm |
| Material specifications | Flammability rating according to UL 94: V2 (Actuator) V0 (Contact element) Housing material: PA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 (with professional installation in the appropriate installation space) Ambient temperature (operation): -25°C ... 70°C Ambient temperature (storage/transport): -40°C ... 80°C Maximum altitude: max. 2000 m (Above sea level) Shock: 15g/11ms, in accordance with IEC 60068-2-27 Vibration (operation): 10Hz...500Hz, 0.35mm amplitude, 5g, in accordance with IEC 60068-2-6 |
| Mounting | Mounting type: Panel mount Assembly instructions: Mounting nut torque: 1.3Nmâ¦1.9Nm Mounting position: any Connection method: Spade connection |
| ECLASS | ECLASS-11.0: 27371216 ECLASS-13.0: 27371216 ECLASS-12.0: 27371216 |
| ETIM | ETIM 9.0: EC000225 |
| UNSPSC | UNSPSC 21.0: 39122200 |
