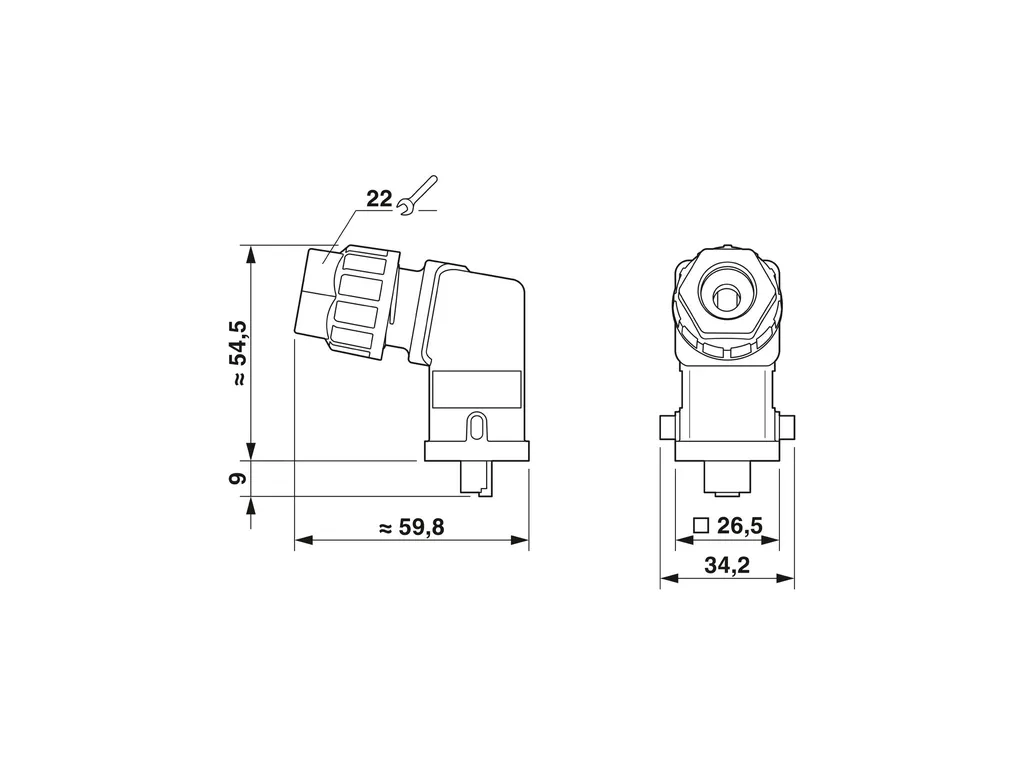

HC-STA-RJ45CT-HS-M20-PLRBK - Connector set

Connector set, number of positions: 8, CAT6_A, material: PA, connection method: Crimp connection, connection cross section: AWG 24- 27, cable outlet: lateral, With RJ45 contact insert, with slotted seal

Product Code: 1249557

Partner cod.: 1249557

PHOENIX CONTACT

Notes	General: Connectors may be operated only when there is no load/voltage.
Product properties	Type: D7 RJ45 Product type: Connector set Number of positions: 8 Connection profile: RJ45 Application: Data Type of the screw connection: 1x M20 Series: HC-D Cable outlet: lateral Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated voltage (III/3): 50 V Rated surge voltage: 0.8 kV Rated current: 1 A Nominal voltage U_N: 50 V Transmission characteristics (category): CAT6_A (IEC 60512-27-100:2008, TIA-568-C.2:2009)
Connection data	Connection method: Crimp connection Connection cross section AWG: 24 ... 27 (flexible)
Material specifications	Flammability rating according to UL 94: V0 Seal material: NBR Contact material: Copper alloy Contact surface material: Au Contact carrier material: PC Impact strength: IK06 Housing material: PA
Cable/line	External cable diameter (): 5 mm ... 6 mm
Mechanical properties	Mechanical data Type of the screw connection: 1x M20
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 Impact strength: IK06 Ambient temperature (operation): -25°C ... 60°C
Mounting	Mounting type: Latching with lower housing part Connection method: Crimp connection
