| Notes | General: For module carrier frame B16 |
| Product properties | Type: B16 Product type: Housing with locking latch Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |

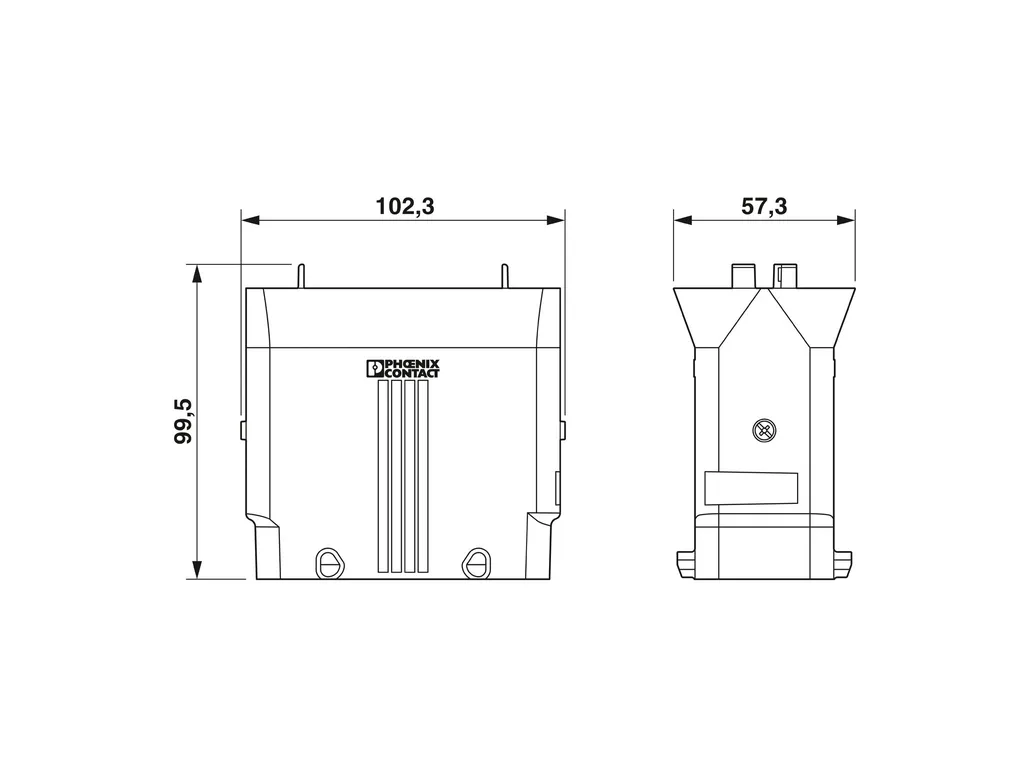

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/848014d0189f3b4d8f7bb1faf79709cd/-S204x204-FJPG Width: 57.3 mm Height: 99.5 mm Length: 102.3 mm |
| Material specifications | Housing material: PA |
| Mechanical properties | Mechanical data Locking type: Pin |
| Mounting | Assembly instructions: The housing has to be extended by the B10 sealing frame with screw locking mechanism (Order No. 0801660). When combined with the sealing frame with screw locking mechanism, a simple assembly of multiple cables in a single HC housing is possible. |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -40°C ... 125°C |
