Notes | General: For module carrier frame B24 |
Product properties | Type: B24 Product type: Housing with locking latch Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |

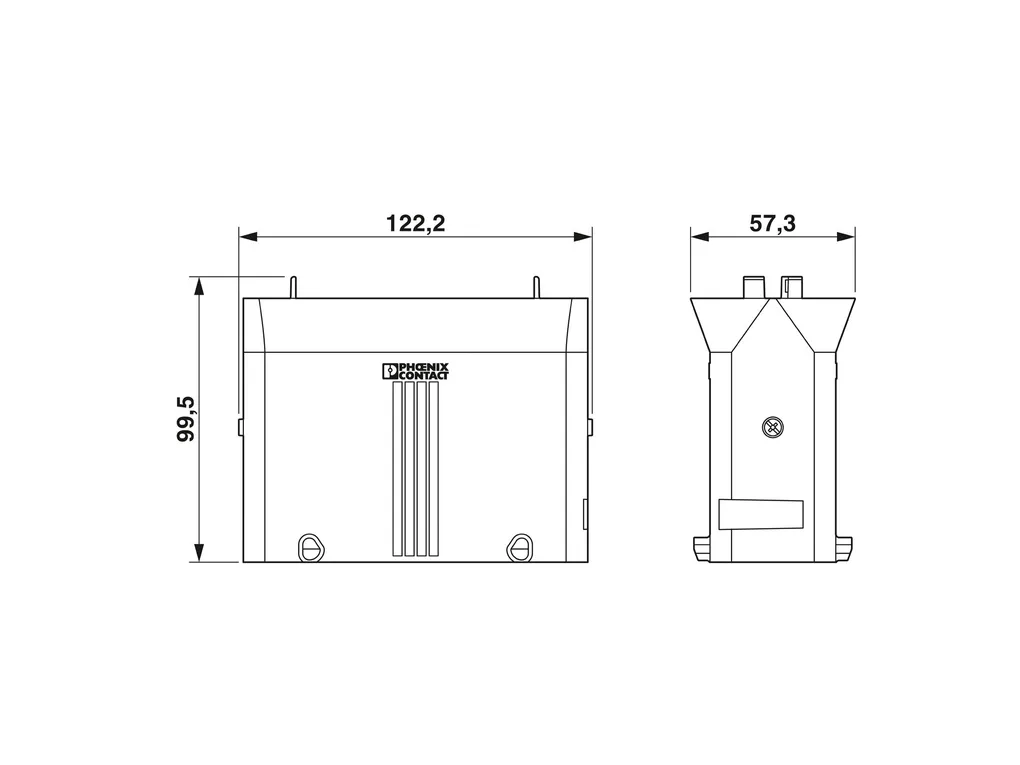

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/080d5dc2f81619458297b8c7da93b640/-S204x204-FJPG Width: 57.3 mm Height: 99.5 mm Length: 122.2 mm |
Material specifications | Housing material: PA |
Mechanical properties | Mechanical data Locking type: Pin |
Mounting | Assembly instructions: The housing has to be extended by the B16 sealing frame with screw locking mechanism (Item No. 0801659). When combined with the sealing frame with screw locking mechanism, a simple assembly of multiple cables in a single HC housing is possible. |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
