RCK-TWUM/BL16+3/10,0PUR-UX - Master cable

Master cable, application: Sensor/actuator box, number of positions: 19, slot assignment: Double, status display: No; master cable connection: M23 plug connection, PUR/PVC, cable length: 10 m, shielding: no, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Product Code: 1260752 Copia - Copy

Partner cod.: 1260752 Copia - Copy

PHOENIX CONTACT

Notes	Notes on operation: The master cable is earmarked for use on the sensor/actuator boxes with an M23 plug-in connection.
Product properties	Product type: Master cable, assembled Application: Sensor/actuator box Number of positions: 19 Data management status Article revision: 01
Electrical properties	Nominal voltage U_N: 48 V AC 60 V DC
Connection data	Connection method: Fixed connection
Signaling	Status display present: No
Material specifications	Material Housing: PUR Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: gold-plated

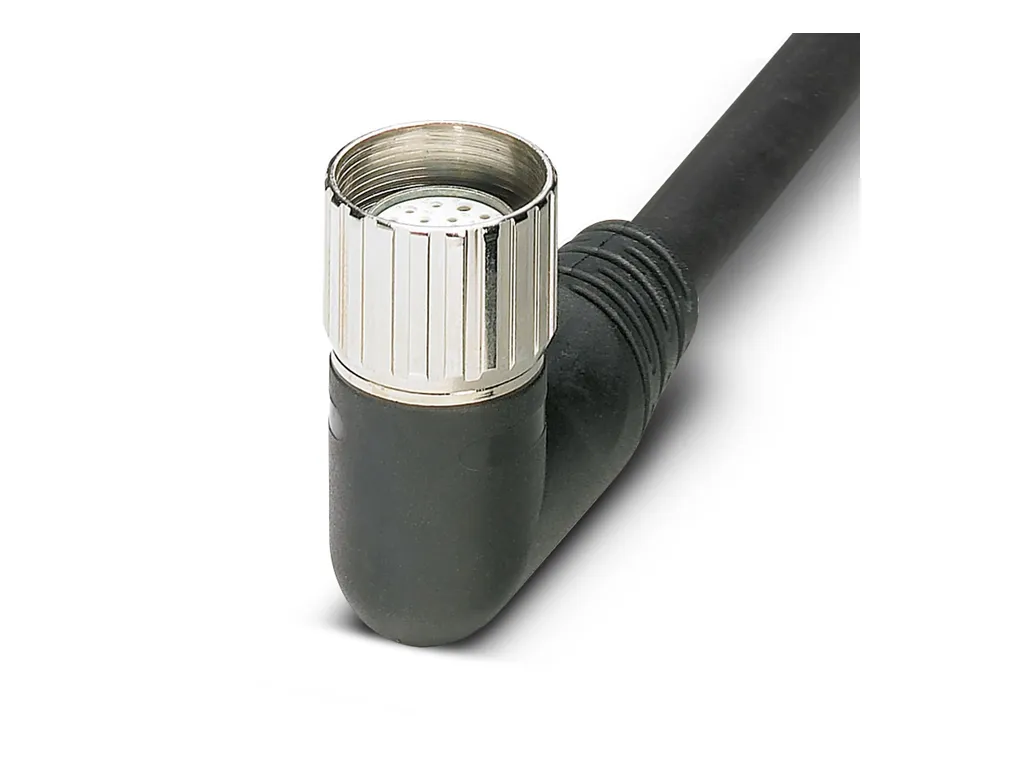

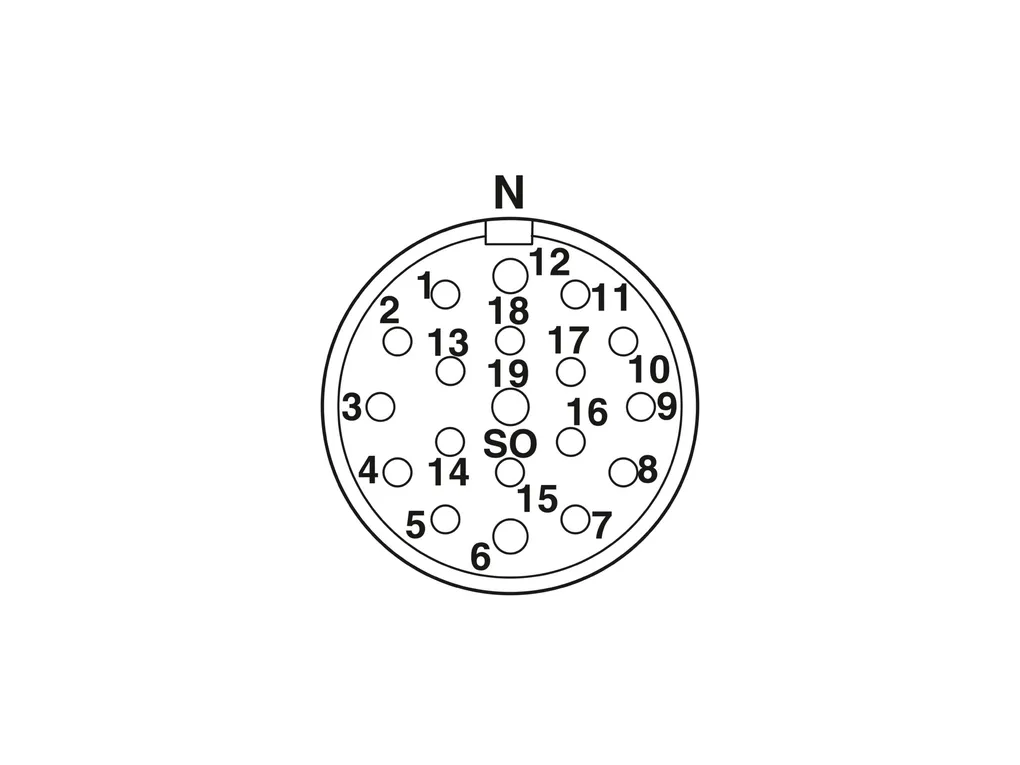

Connector	Connection 1 Head design: Socket Head cable outlet: angled Head thread type: M23 Connection 2 Head design: free cable end
Cable/line	Cable length: 10 m PUR/PVC black [PUR] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9210/full/b1500?format=jpg Cable weight: 183.7 kg/km UL AWM Style: 20549 (80 °C/300 V) Number of positions: 19 Shielded: no Cable type: PUR/PVC black [PUR] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 16x 0.5 mm² (Signal line) 3x 1 mm² (power line) Wire diameter incl. insulation: 1.5 mm Ã±0.1 mm (Signal line) 2.1 mm Ã±0.1 mm (power line) External cable diameter: 10.50 mm Ã±0.2 mm Outer sheath, material: PUR External sheath, color: black RAL 9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown Inner sheath thickness: Ã¢Ã¢°¥ 0.15 mm Thickness, outer sheath: Ã¢Ã¢°¥ 0.76 mm Overall twist: Wires twisted in layers Nominal voltage, cable: 300 V Test voltage: 2000 V Minimum bending radius, fixed installation: 7.5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 79 mm Smallest bending radius, movable installation: 105 mm Dynamic load capacity (bending): Max. bending cycles: 1500000, Bending radius: 10 x D, Traversing path: 2 m, Traversing rate: 2 m/s Flame resistance: according to DIN EN 50265 Resistance to oil: according to VDE 0472 Part 803 Other resistance: Highly resistant to acids, alkaline solutions and solvents Special properties: Silicone-free Ambient temperature (operation): -40 °C ... 90 °C (cable, fixed installation) -5 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -40 °C ... 125 °C (Plug / socket)
