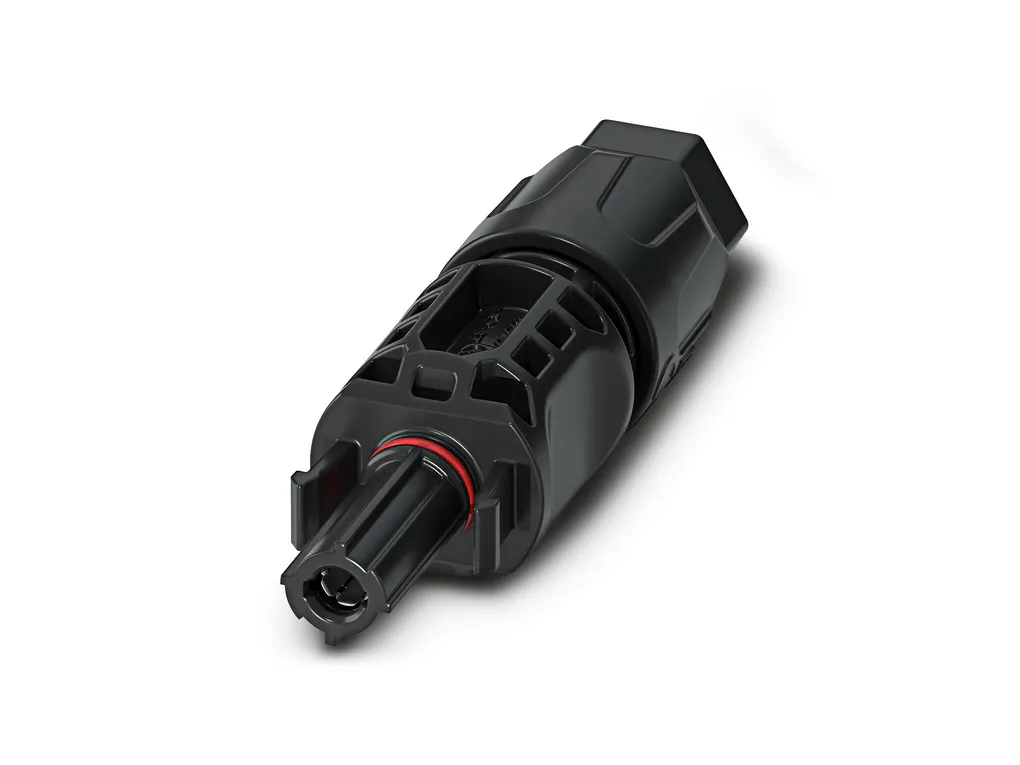

PRC 20/5-C1-FC-FS2,5 6-14 - Coupler connector
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Setting option for release: 1. with a tool or 2. by hand For assembly notes, please refer to the packing slip |

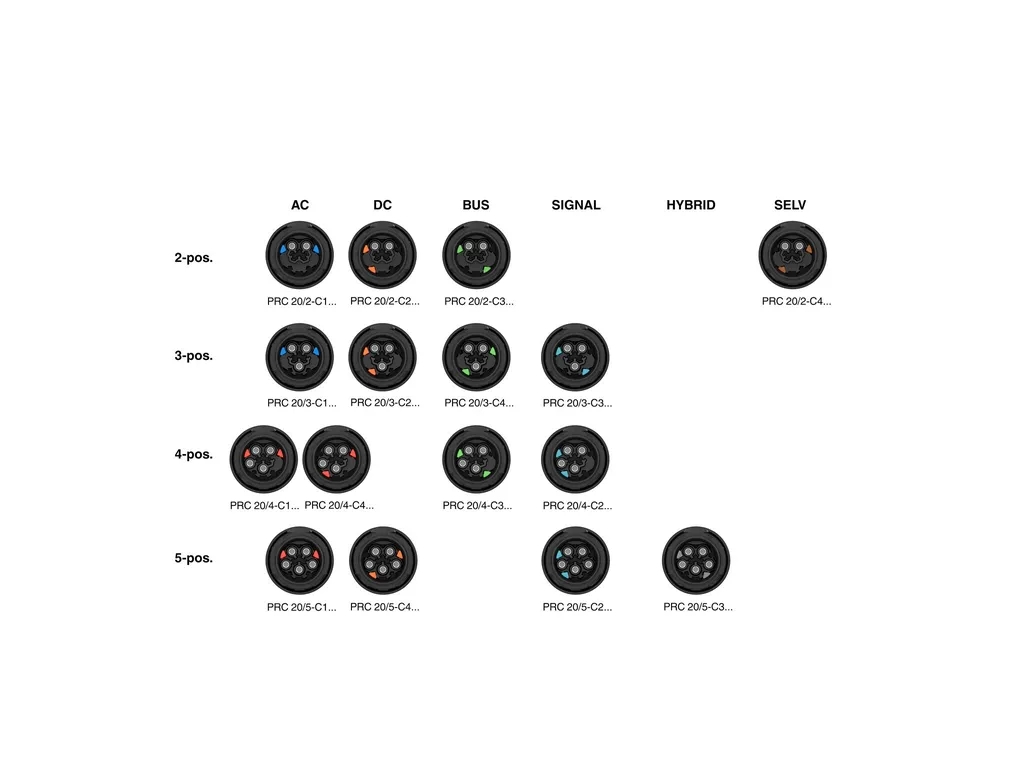

Product properties | Product type: Installation connector Product family: PRC 20 Number of positions: 5 Connection profile: 4+PE Coding: 5-C1 Area of application: AC Insulation characteristics Protection class: II |
Electrical properties | Nominal voltage ATD: 400 V (III/2) in accordance with IEC 61984 400 V AC (III/2) in accordance with IEC 61535 600 V AC / DC (III/2) in accordance with UL2238 / UL2237 500 V DC (III/2) in accordance with IEC 61535 Rated current: 20 A (With 2.5mm² conductor cross section in accordance with IEC 61984) |
Dimensions | Width: 28.5 mm Height: 28.5 mm Length: 80.4 mm |
Material specifications | Material: PPE (Housing) PPE (Contact carriers) CuZn (Contact material, Pb <0.1) PC (Cable gland) EPDM (Cable seal) EPDM (Housing seal) |
Cable/line | External cable diameter: 8 mm ... 14 mm Single wire, cross section: 0.5 mm² 2.5 mm² Stripping length of the individual wire: 10 mm (Lay PE conductor 8mm leading) Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (2m / 2h) IP69 Ambient temperature (operation): -40°C ... 85°C |
Mounting | Connection method: Screw connection |
ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
ETIM | ETIM 9.0: EC002635 |
