PHOENIX CONTACT 1313316
PHOENIX CONTACTNot available

PRC 20/3-C1-FC-FS2,5 6-14 - Coupler connector

Coupler connector, Range of articles: PRC 20, color: black, number of positions: 3, min. conductor cross section: 0.5 mm2, max. conductor cross section: 2.5 mm2, rated voltage: 400 V, rated current: 25 A, Connection method: Screw connection, Contact connection type: Socket, min. cable diameter: 8 mm, max. cable diameter: 14 mm. Setting option for release: 1. with a tool or 2. by hand. AC
Product Code: 1313316
Partner cod.: 1313316
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
NotesGeneral: Setting option for release: 1. with a tool or 2. by hand
For assembly notes, please refer to the packing slip
Product propertiesProduct type: Installation connector
Product family: PRC 20
Number of positions: 3
Connection profile: 2+PE

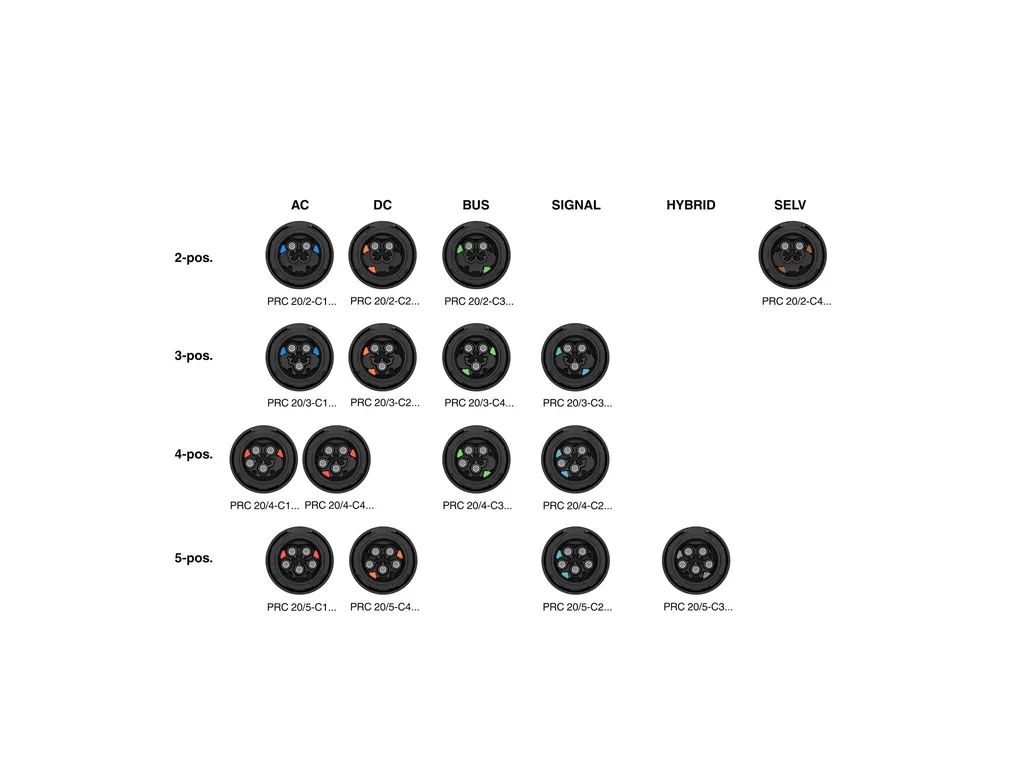

Coding: 3-C1
Area of application: AC
Insulation characteristics
Protection class: II
Electrical propertiesNominal voltage ATD: 400 V (III/2) in accordance with IEC 61984
400 V AC (III/2) in accordance with IEC 61535
600 V AC / DC (III/2) in accordance with UL2238 / UL2237
500 V DC (III/2) in accordance with IEC 61535
Rated current: 25 A (With 2.5mm² conductor cross section in accordance with IEC 61984)
DimensionsWidth: 28.5 mm
Height: 28.5 mm
Length: 80.4 mm
Material specificationsMaterial: PPE (Housing)
PPE (Contact carriers)
CuZn (Contact material, Pb <0.1)
PC (Cable gland)
EPDM (Cable seal)
EPDM (Housing seal)
Cable/lineExternal cable diameter: 8 mm ... 14 mm
Single wire, cross section: 0.5 mm² 2.5 mm²
Stripping length of the individual wire: 10 mm (Lay PE conductor 8mm leading)
Halogen-free: yes
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
IP68 (2m / 2h)
IP69
Ambient temperature (operation): -40°C ... 85°C
MountingConnection method: Screw connection
Technical Specs
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_03825.pdf

Manufacturer_declaration_03826.pdf

Package_slip_01791.pdf

Technical_drawing_10971.pdf
