| Product properties | Type: Male Product type: Thermal device circuit breakers Number of positions: 1 Insulation characteristics Overvoltage category: II (Installation area) III (Actuation area) Degree of pollution: 2 |
| Electrical properties | Fuse type: Automatic device Fuse: Slow-blow General Rated voltage: 250 VAC 72 VDC 250 VAC (UL/CSA) 72 VDC (UL/CSA) Rated current IN: 20 A Rated surge voltage: 2.5 kV Insulation resistance Riso: > 100 Mé (500 V DC) Tripping method: T (thermal) Device resistance: 0 é Rated short-circuit switching capacity Icn: 200 A (250VAC) 200 A (72 V DC) Short-circuit switching capacity: 2000 A (250 V AC / UL 1077) 2000 A (72 V DC / UL 1077) Dielectric strength: 3000 VAC (Actuation area) 1500 VAC (Installation area) Switching cycles, max.: 6000 (At 1 x In, low-induction) 3000 (At 1 x In, inductive) 40 (at 6 x In, AC) |
| Connection data | Connection method: pluggable |

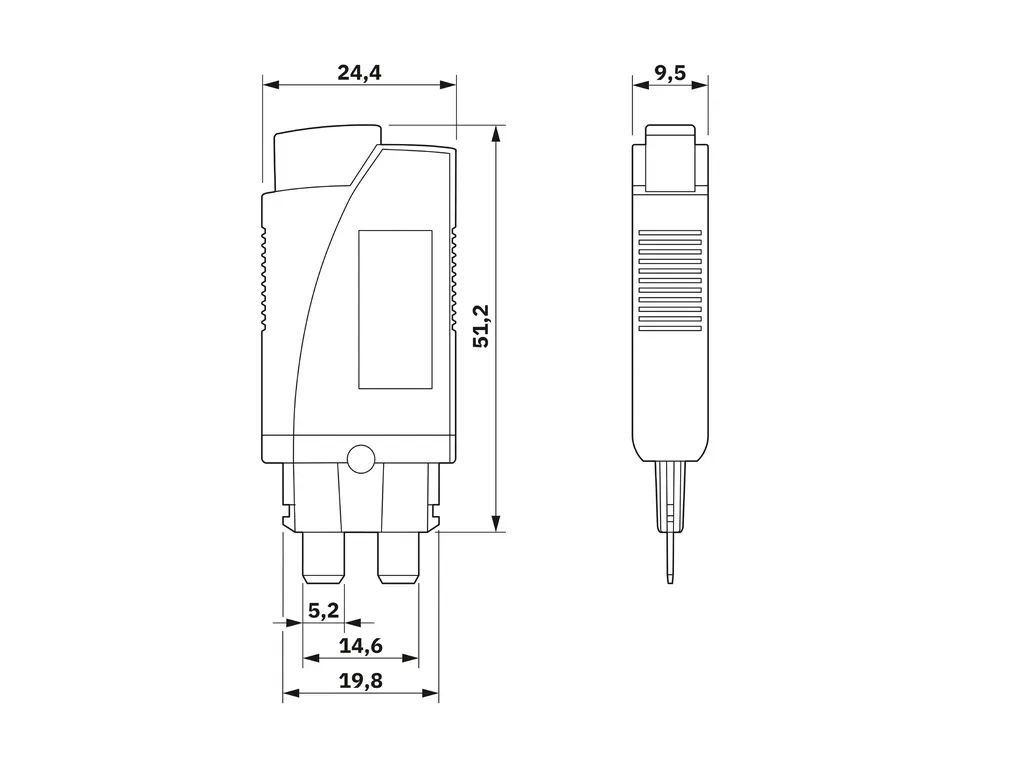

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ac817c0156147c41bff20e82c33aa4fd/-S204x204-FJPG Width: 9.5 mm Height: 24.4 mm Height NS 35/7,5: 55 mm Depth: 44.5 mm |
| Material specifications | Flammability rating according to UL 94: V-0 Insulating material group: IIIb Insulating material: PPS |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP40 (Actuation area) IP00 (Connection area) Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ⤠4000 m (amsl) Humidity test: 240 h, 95 % RH, 40°C Shock (operation): 25g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) Vibration (operation): ± 0.38mm (10 ... 57Hz) 5g (57 ... 500Hz) |
| Standards and regulations | Standards/specifications: EN60934 |
| Mounting | Mounting type: on base element |
| ECLASS | ECLASS-11.0: 27141116 ECLASS-12.0: 27141116 ECLASS-13.0: 27140401 |
| ETIM | ETIM 9.0: EC000899 |
| UNSPSC | UNSPSC 21.0: 39121400 |
