| Notes | General
Note: LABS release ââ¬Ã¢ in accordance with test specification VWÃPVÃ3.10.7:2005-0
When connecting the conductor, make sure that the CAPAROC modules are not pulled apart due to tensile force. Gaps must not be created between the modules.
Observe the specified conditions for use in potentially explosive areas. Install the device in a suitable approved housing with at least IP54 degree of protection that meets the requirements of IEC/ENÃ60079-0. Also observe the requirements of IEC/ENÃ60079-14.
|
| Product properties | Product type: Device circuit breakers
Product family: CAPAROC
Number of positions: 1
No. of channels: 2
Number of slots: 2
Insulation characteristics
Protection class: III
Pollution degree: 2
|
| Electrical properties | No. of channels: 2
General
Operating voltage: 10 VÃDC ... 30 VÃDC
Rated voltage: 12 VÃDC
24 VÃDC
Rated current IN: 4 AÃDC (per channel)
1Ã/Ã2Ã/Ã3Ã/Ã4ÃAÃDCÃ(Adjustable via rotary coding switches)
1Ã/Ã2Ã/Ã3Ã/Ã4ÃAÃDCÃ(can be set, in RC mode via power module with communication interface)
Rated current (pre-adjusted): 1 A
Rated surge voltage: 0.5 kV
Tripping method: E (electronic)
Feedback resistance: max. 35 VÃDC
Switch-on delay: 50 ms (each channel preset by default)
can be adapted with CAPAROC PMÃIOL and CAPAROC PMÃPN power modules
Required backup fuse: Only required if Imax of the power supply > the short-circuit switching capacity. Integrated failsafe element.
Short-circuit switching capacity: 300 A
Dielectric strength: 35 VÃDC (Load circuit)
Active current limitation: typ. 2.0Ãx IN at IN ââ°¤ 3ÃA
typically 1.5Ãx IN at IN = 4ÃA
Fuse: electronic
Efficiency: > 99 %
Closed circuit current I0: typ. 25 mA (no load at 24ÃV)
Power dissipation: typ. 0.6 W (no load at 24ÃV)
< 1.1 W (in nominal operation at 24ÃV and 4ÃA)
Measuring tolerance I: ñ 10 % (typ.)
MTBF (IEC 61709, SN 29500): 11364927 h (at 25ðC with 21Ã% load)
5271554 h (atÃ40°C with 34.25%Ãload)
640731 h (atÃ65°C with 100%Ãload)
Voltage drop: 0.06 V (at 4 A)
Fail-safe element: 5 AÃDC (per output channel)
Load circuit
Shutdown time: 5 s (with overload 1.1â⬦1.3ÃxÃIN at IN ââ°¥ 4ÃA)
5 s (for overload 1.1â⬦1.7ÃxÃIN at IN < 4ÃA)
ââ°¤ 400 ms (max. 450Ãms for high starting currents)
typ. 20 ms (for short circuit > 1,5 x IN)
Undervoltage switch-off: ââ°¤ 8.5 VÃDC (active)
ââ°¥ 9.2 VÃDC (inactive)
Overvoltage switch-off: ââ°¥ 32.5 VÃDC (active)
ââ°¤ 30.5 VÃDC (inactive)
Max. capacitive load: ââ°¤ 60000 õF (Depending on the current setting and the short-circuit current available)
|
| Connection data | Fuse-protected output
Connection method: Push-in connection
Stripping length: 10 mm
Conductor cross section flexible: 0.2 mm² ... 4 mm²
Conductor cross section rigid: 0.2 mm² ... 4 mm²
Conductor cross section AWG: 24 ... 12
Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 4 mm²
|
| Signaling | Channel LED off: off (Channel switched off)
Channel LED yellow: lit (Channel switched on, channel loadÃ>Ã80%Ã)
two flashes (Check the installation, no communication to power module)
Channel LED green: lit (Channel switched on)
flashing (Channel switched on, coding switch position is not equal to set value)
Channel LED red: lit (Channel switched off, over- or undervoltage active)
ON temporarily (Channel switched off, 5Ãs cool-down phase, overload or short-circuit release)
flashing (Channel switched off, ready to be switched back on, overload or short-circuit release)
two flashes (Channel switched off, system total current limit exceeded)
Channel LED red-yellow: flashing (Channel is overloaded and is switched off)
Channel LED red-green: flashing (Channel switched off, programming mode active, current adjustment after overload or short-circuit release)
|

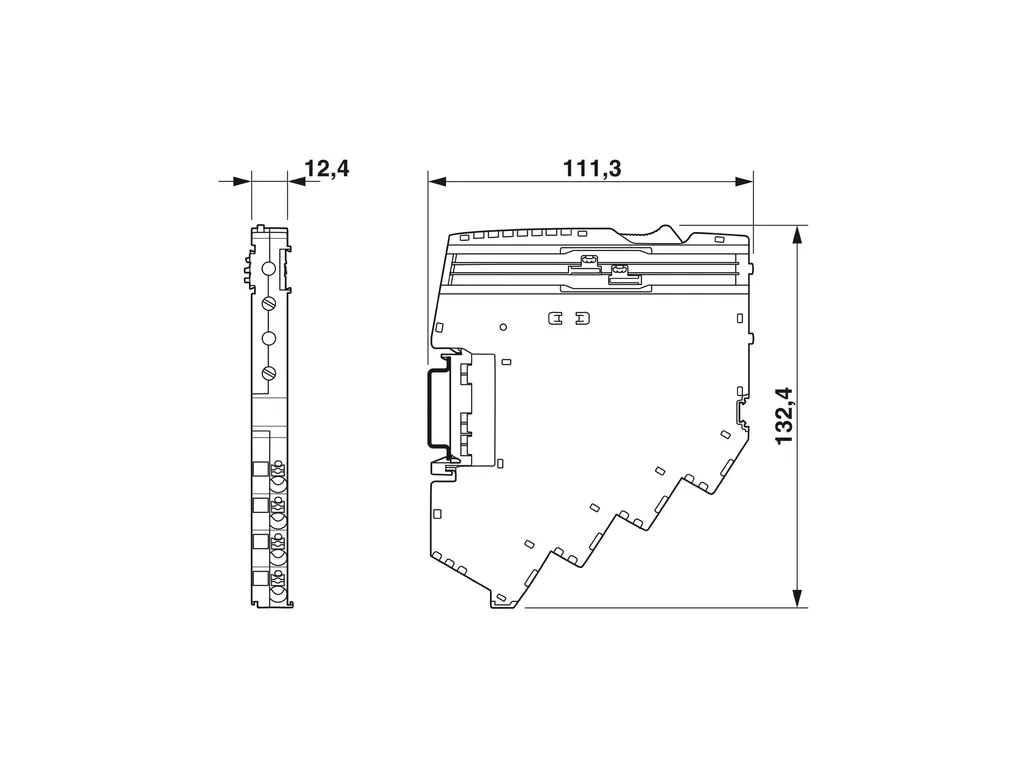

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b0f91290c277b94ba6f21ceffa4d4ef8/-S204x204-FJPG
Width: 12.4 mm
Height: 132.4 mm
Depth: 111.3 mm (incl. DIN rail 7.5Ãmm)
|
| Material specifications | Material: PA 6
PC
Flammability rating according to UL 94: V-0
|
| Environmental and real-life conditions | Ambient conditions
Degree of protection: IP20
Ambient temperature (operation): -30°C ... 65°C (The temperature range of the power module must be taken into consideration)
Ambient temperature (storage/transport): -40°C ... 70°C
Altitude: ââ°¤ 4000 m (amsl)
Humidity test: 96Ãh, 95Ã%ÃRH, 40ðC
Shock (operation): 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27)
25g (6Ãms duration, half-sine shock pulse in accordance with IEC 60068-2-27, continuous shock)
Vibration (operation): 5g (10 ... 150ÃHz / 10Ãcycles / axis / X,ÃY,ÃZ)
|
| Approvals | UL approval
Identification: UL/C-UL Listed UL 508
UL Recognized UL 2367
UL 121201 Class I, Division 2, Groups A, B, C, D, T4A
NEC Class 2 according to UL 1310
ATEX
Identification: TÃÃ
VÃ22 ATEXÃ8874 X
II 3G Ex ec IIC T4 Gc
IECEx
Identification: IECExÃTURÃ22.0049X
II 3G Ex ec IIC T4 Gc
UKCAÃExÃ(UKEX)
Identification: TÃÃ
VÃ22ÃUKEXÃ7109ÃX
II 3G Ex ec IIC T4 Gc
|
| Standards and regulations | Standards/specifications: ENÃ61000-6-2
ENÃ61000-6-3
ENÃ60068-2-78
ENÃ50178
ENÃ60068-2-6
ENÃ60068-2-27
IEC 60079-7
IEC 60079-0
Note: EMC ââ¬Ã¢ Immunity for industrial areas
EMC ââ¬Ã¢ Emission for residential, business and commercial properties and small operations
Environmental influences ââ¬Ã¢ Moisture and heat, constant
Equipping power installations with electronic equipment
Environmental influences ââ¬Ã¢ Vibrations (sinusoidal)
Environmental influences ââ¬Ã¢ Shocks
Explosive atmospheres ââ¬Ã¢ PartÃ7: Equipment protection by increased safety ââ¬Ã
eââ¬
Explosive atmospheres ââ¬Ã¢ PartÃ0: Equipment ââ¬Ã¢ General requirements
|
| Mounting | Mounting type: pluggable onto CAPAROC CRâ⬦ current rail
|
Not available
