| Product properties | Type: B10 Product type: Protective cover Housing type: Protective cover Seal present: yes |

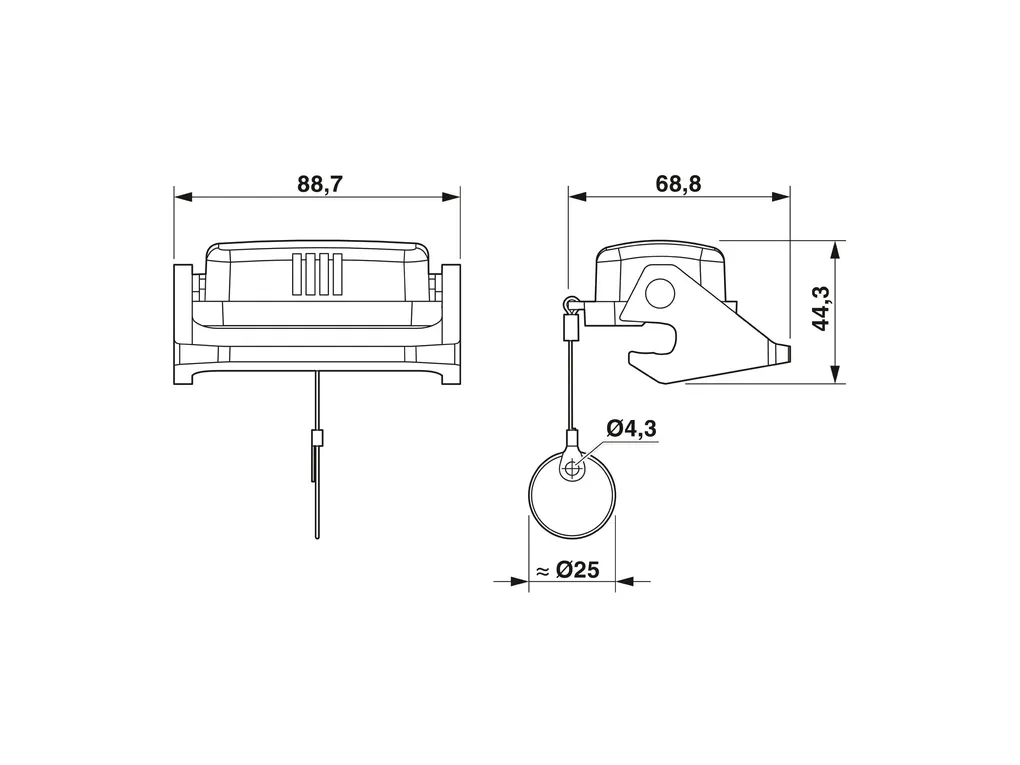

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/97184524bc81bc42994cb318803829b0/-S204x204-FJPG Width: 46.7 mm Height: 26.3 mm Length: 88.7 mm Diameter: 40 mm |
| Material specifications | Material: PC Flammability rating according to UL 94: V0 Seal material: NBR Material, protective cover: PC |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 125°C |
| Mounting | Assembly instructions: Double eyelet for mounting on a cable / below screw head Plastic protective cover for short-term protection |
