Product properties | Type: B24 Product type: Protective cover Housing type: Protective cover Seal present: yes |

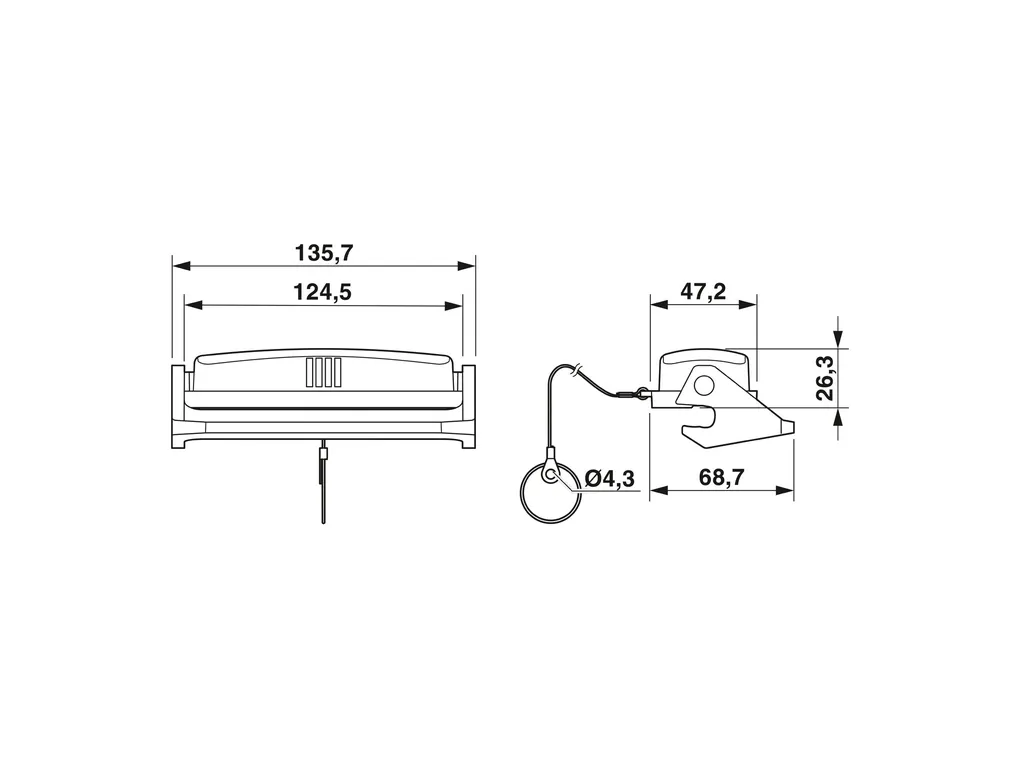

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9b0627d358227a458a55d9d2463b3d5c/-S204x204-FJPG Width: 47.2 mm Height: 26.3 mm Length: 124.5 mm Diameter: 40 mm |
Material specifications | Material: PC Flammability rating according to UL 94: V0 Seal material: NBR Material, protective cover: PC |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 125°C |
Mounting | Assembly instructions: Double eyelet for mounting on a cable / below screw head Plastic protective cover for short-term protection |
ECLASS | ECLASS-11.0: 27440208 ECLASS-12.0: 27440208 ECLASS-13.0: 27440208 |
ETIM | ETIM 9.0: EC002314 |
UNSPSC | UNSPSC 21.0: 39121400 |
