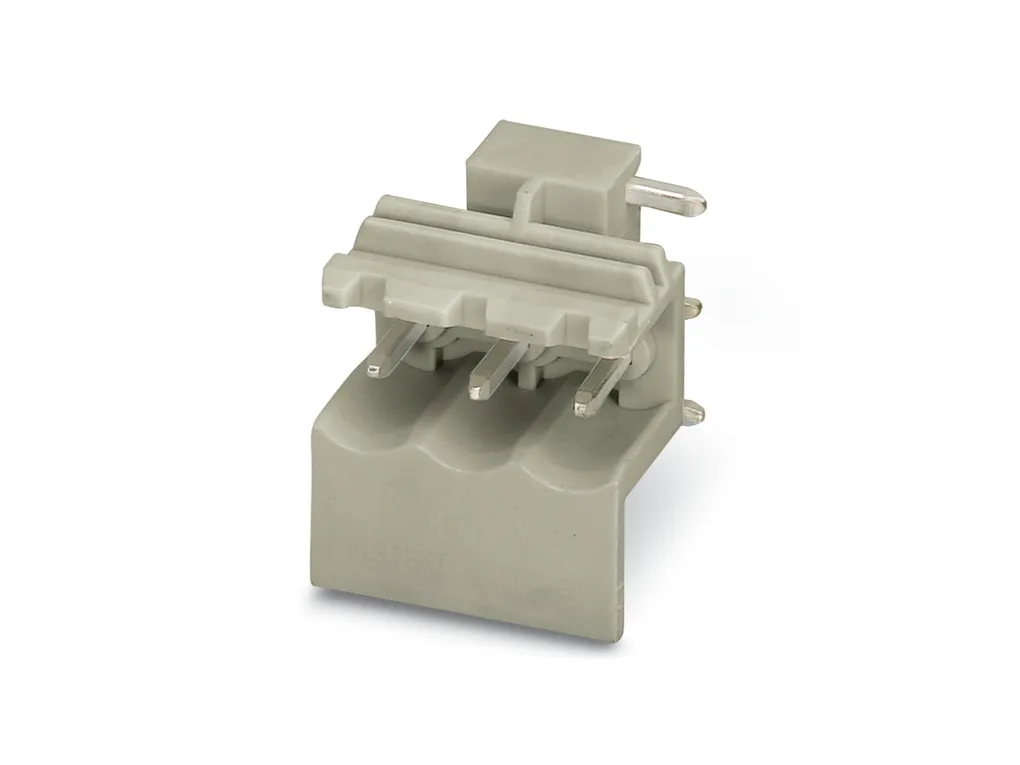

| Notes | Assembly note: Refer to the data sheet for the range in the download area. Recommendation: Material of contact pads for bus connector, galvanic gold (hard gold) |
| Product properties | Product type: Complete housing Housing type: DIN rail housing Housing series: ME-MAX Product family: ME MAX.. G 3-3 Type: Lower housing parts without vents, housing cover necessary to complete the module Complete housing with metal foot catch, flat design Max. number of positions: 60 (pitch: 3.5 mm) 48 (pitch: 5 mm) 36 (pitch: 7.25 mm/7.5 mm) Number of rows: 3 Ventilation openings present: no |

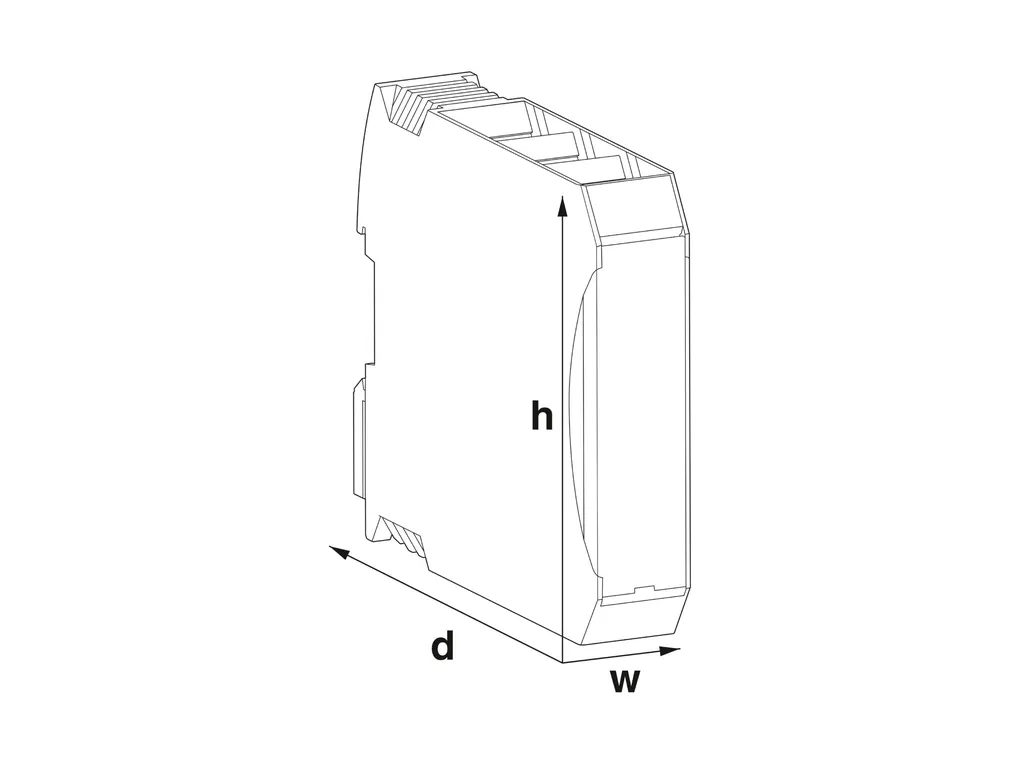

| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/22580/full/b1500?format=jpg Width: 45.2 mm Height: 85 mm Depth: 92 mm Depth from top edge of DIN rail: 84.5 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color (Housing): blue grey (RAL 7031) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Housing material: Polyamide Surface characteristics: untreated |
| Environmental and real-life conditions | Power dissipation single housing for 20 °C Ambient temperature: 20 °C Reduction factor: 1 Mounting position: vertical Power dissipation: 7.1 W Power dissipation single housing for 30 °C Ambient temperature: 30 °C Reduction factor: 0.91 Mounting position: vertical Power dissipation: 6.45 W Power dissipation single housing for 40 °C Ambient temperature: 40 °C Reduction factor: 0.81 Mounting position: vertical Power dissipation: 5.75 W Power dissipation single housing for 50 °C Ambient temperature: 50 °C Reduction factor: 0.7 Mounting position: vertical Power dissipation: 5 W Power dissipation single housing for 60 °C Ambient temperature: 60 °C Reduction factor: 0.57 Mounting position: vertical Power dissipation: 4 W Power dissipation single housing for 70 °C Ambient temperature: 70 °C Reduction factor: 0.49 Mounting position: vertical Power dissipation: 3.5 W Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1 octave/min Amplitude: 0.15 mm (10 Hz ... 58.1 Hz) Acceleration: 2g (58.1 Hz ... 150 Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Mechanical strength / tumbling barrel Specification: IEC 60998-1:2002-12 Height of fall: 50 cm Frequency: 10 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11 ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40 °C ... 105 °C (depending on power dissipation) Ambient temperature (storage/transport): -40 °C ... 55 °C Ambient temperature (assembly): -5 °C ... 100 °C Relative humidity (storage/transport): 80 % |
| PCB data | Number of PCB holders: 2 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: DIN rail mounting |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
