| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. |
| Mounting | Assembly instructions: The connector pin assignment can be rotated 90° to the cable outlet Connection method: Solder connection |

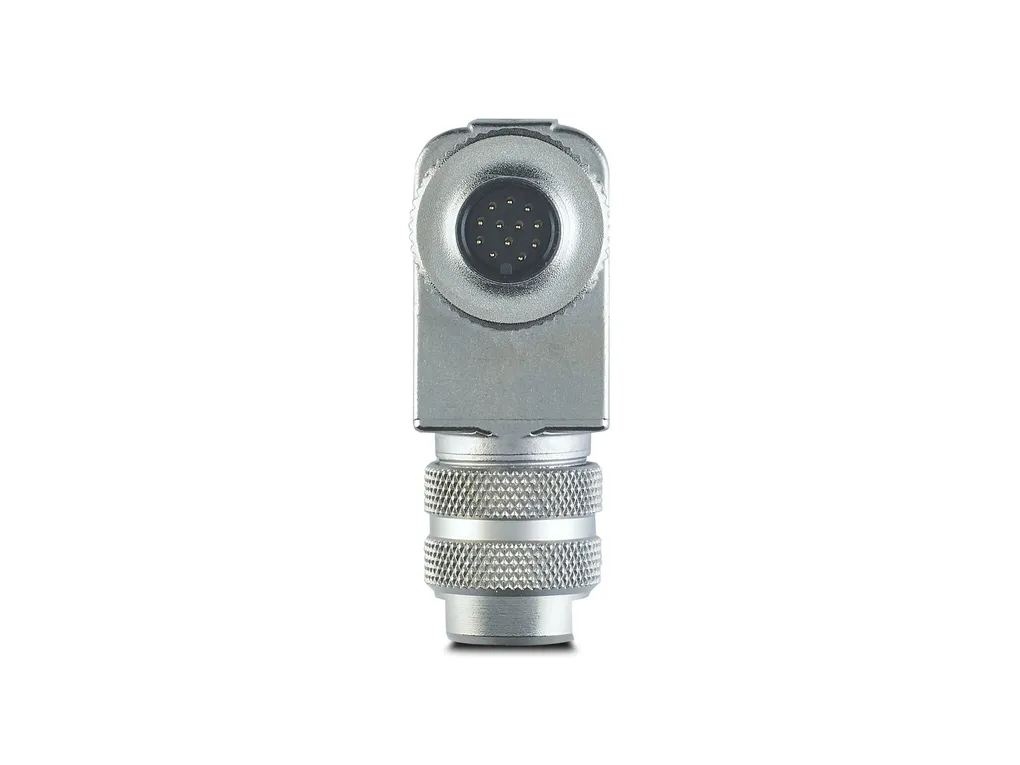

| Product properties | Product type: Circular connector (cable-side) Sensor type: Universal Number of positions: 12 No. of cable outlets: 1 Shielded: yes Coding: A Cable outlet: angled Pg screw connection: Pg9 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/49c4a4910d6a284280203c61efffc8ed/-S204x204-FJPG Width: 20.2 mm Height: 55 mm Length: 41.8 mm External dimensions Outside diameter: 6 mm ... 8 mm Housing Diameter housing: 20.2 mm |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: Zinc die-cast, nickel-plated Contact material: CuZn Contact surface material: Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
| Connection data | Conductor connection Connection method: Solder connection Connection cross section: 0.08 mm² ... 0.25 mm² (without ferrule) 0.08 mm² ... 0.25 mm² (solid) Connection cross section AWG: 28 ... 24 (without ferrule) Stripping length of the individual wire: 4 mm Tightening torque: 0.4 Nm (M12 knurl) 0.8 Nm ... 1 Nm (Pressure screw) |
| Electrical properties | Rated surge voltage: 0.5 kV Contact resistance: ⤠3 mé Insulation resistance: > 10 Gé Nominal voltage UN: 30 VAC 30 VDC Nominal current IN: 1.5 A (up to 40°C) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Connector | Connection 1 Head design: Plug Head cable outlet: angled Head thread type: M12 Coding: A |
| Cable/line | Signal type/category: Universal Stripping length of the individual wire: 4 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 9.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
