Not available
| Product properties | Product type: Data front plate Shielded: yes |
| Electrical properties | Rated voltage (III/3): 48 V AC/DC (D-SUBÃ9) max. 42.4 VÃDC (D-SUB 9, RJ45, UL rating) max. 30 VÃAC (D-SUB 9, RJ45, UL rating) Rated current: 3 A (D-SUBÃ9) max. 175 mA (RJ45, D-SUBÃ9, UL rating) |

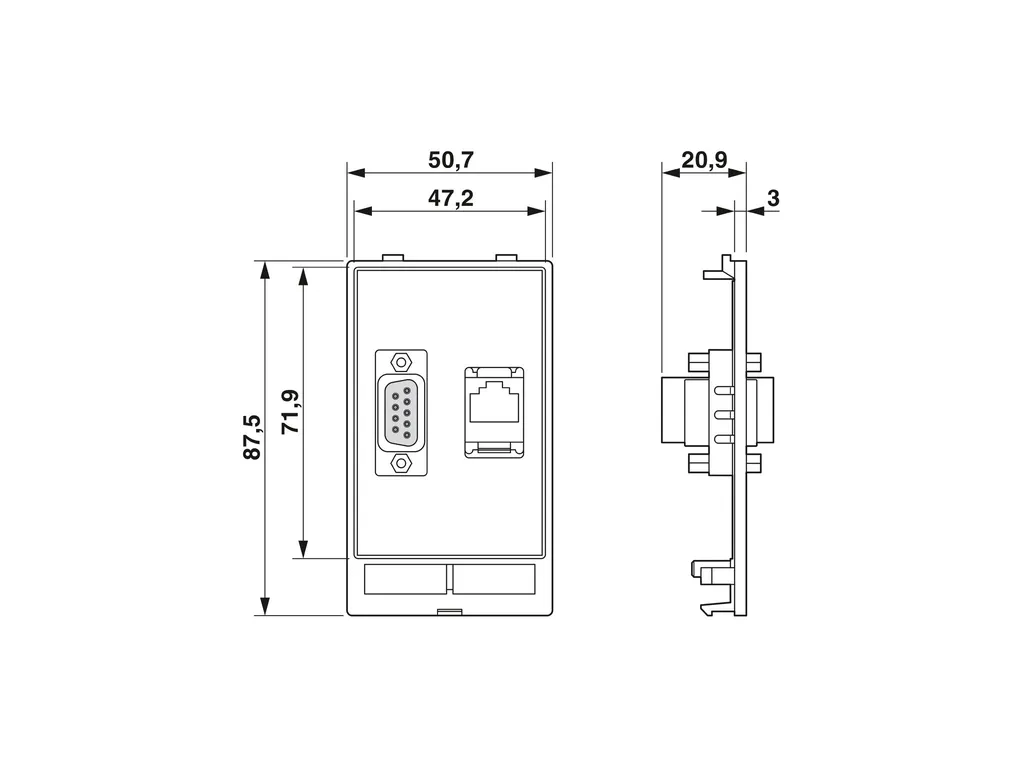

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fbc1c98f2fbbf5439178758e5a16f030/-S204x204-FJPG Width: 50.7 mm Height: 87.5 mm Depth: 21 mm |
| Material specifications | Material: PBT |
| Connector | Contact insert design: with 1x D-SUBÃ9 Socket/socket, slot locking UNC 4...40 bolts with 1x RJ45 Socket/socket, snap-in slot locking |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C |
| Mounting | Assembly instructions: suitable for all mounting frames |
