| Notes | General: Strain relief USB internal: cable tie |
| Product properties | Product type: Data front plate Shielded: yes |
| Electrical properties | Rated voltage (III/3): max. 42.4 VDC (RJ45, USB A, UL-Rating) max. 30 VAC (RJ45, USB A, UL-Rating) 48 V AC/DC (USBA) Rated current: 1.5 A (USBA) 175 mA (RJ45) |

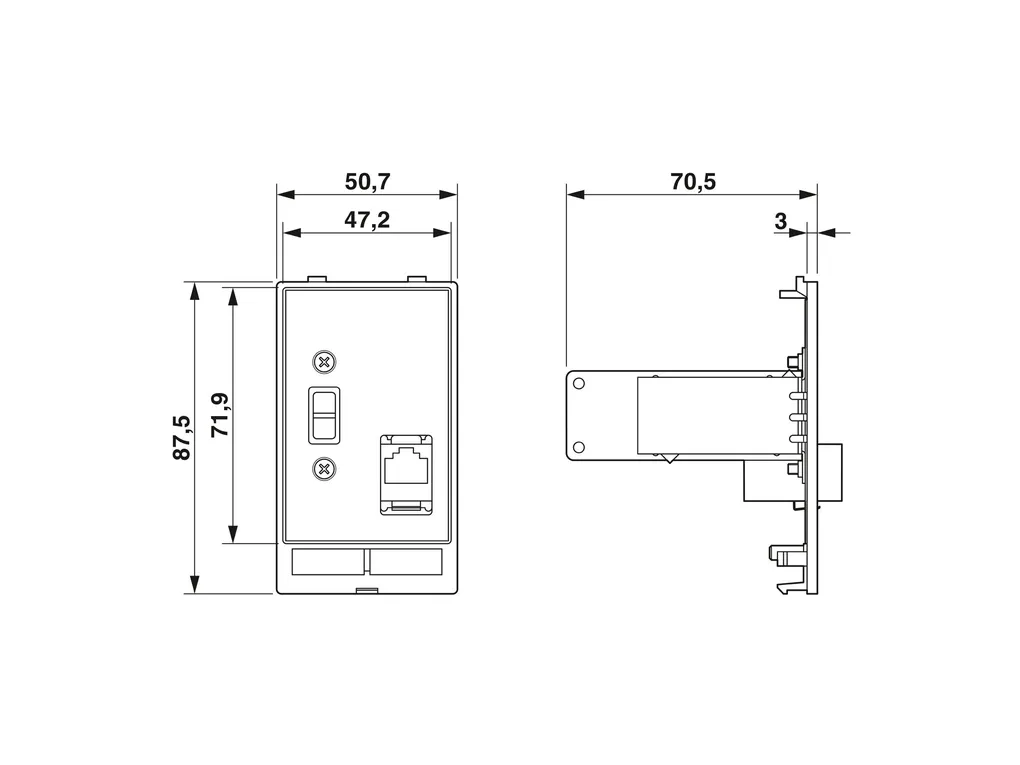

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e017171141ed314dbaeaab64888b8820/-S204x204-FJPG Width: 50.7 mm Height: 87.5 mm Depth: 60 mm |
| Material specifications | Material: PBT |
| Connector | Contact insert design: with 1x RJ45 Socket/socket, snap-in slot locking with 1x USB A 3.0 Socket/socket, snap-in slot locking |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C |
| Mounting | Assembly instructions: suitable for all mounting frames |
| ECLASS | ECLASS-11.0: 27182806 ECLASS-12.0: 27182806 ECLASS-13.0: 27182806 |
| ETIM | ETIM 9.0: EC000456 |
| UNSPSC | UNSPSC 21.0: 39121300 |
