| Product properties | Product type: Data front plate Number of positions: 8 Connection profile: RJ45 Shielded: yes Insulation characteristics Degree of pollution: 3 |
| Electrical properties | Contact resistance: < 30 mé Insulation resistance: > 500 Mé Nominal voltage UN: 24 VAC (max. 50V) Nominal current IN: max. 1.5 A |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 Contact material: CuSn |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (with closed protective cover) IP20 (when plugged in) Ambient temperature (operation): -25°C ... 70°C Ambient temperature (storage/transport): -25°C ... 85°C |

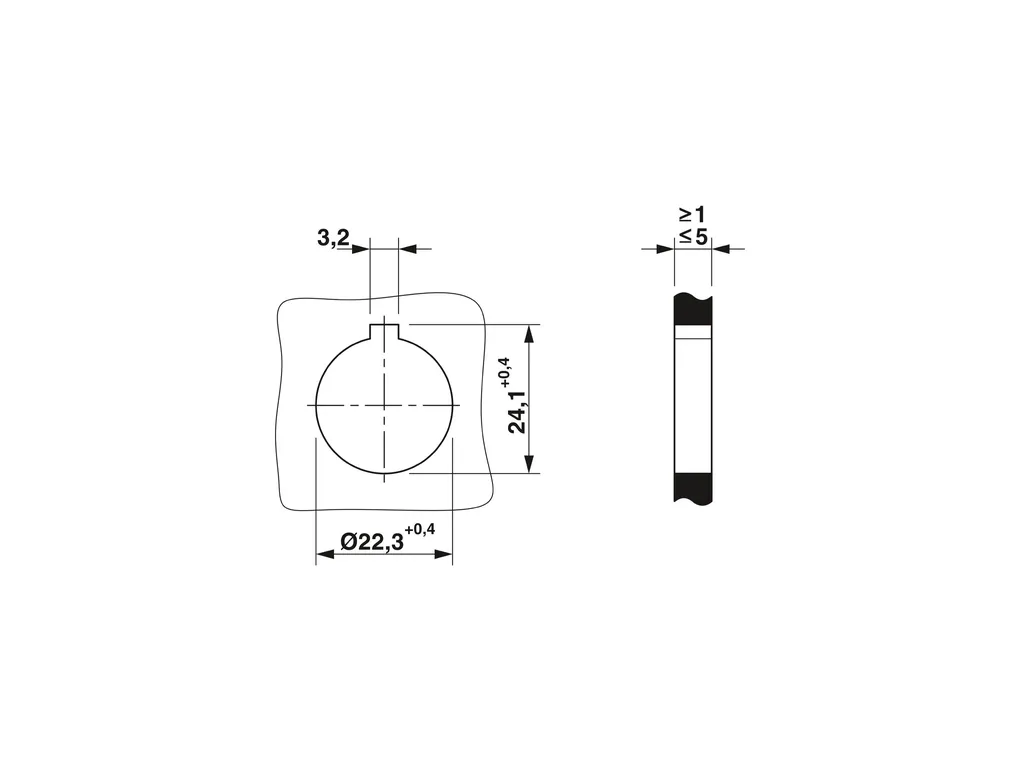

| Mounting | Assembly instructions: Front panel cut-out D = 22.5 mm |
| ECLASS | ECLASS-11.0: 27440192 ECLASS-12.0: 27440192 ECLASS-13.0: 27440192 |
| ETIM | ETIM 9.0: EC002943 |
| UNSPSC | UNSPSC 21.0: 39121400 |
