Notes | General: with enclosed rotary knob |
Product properties | Product type: Mounting frame Type: for 2 front plates |

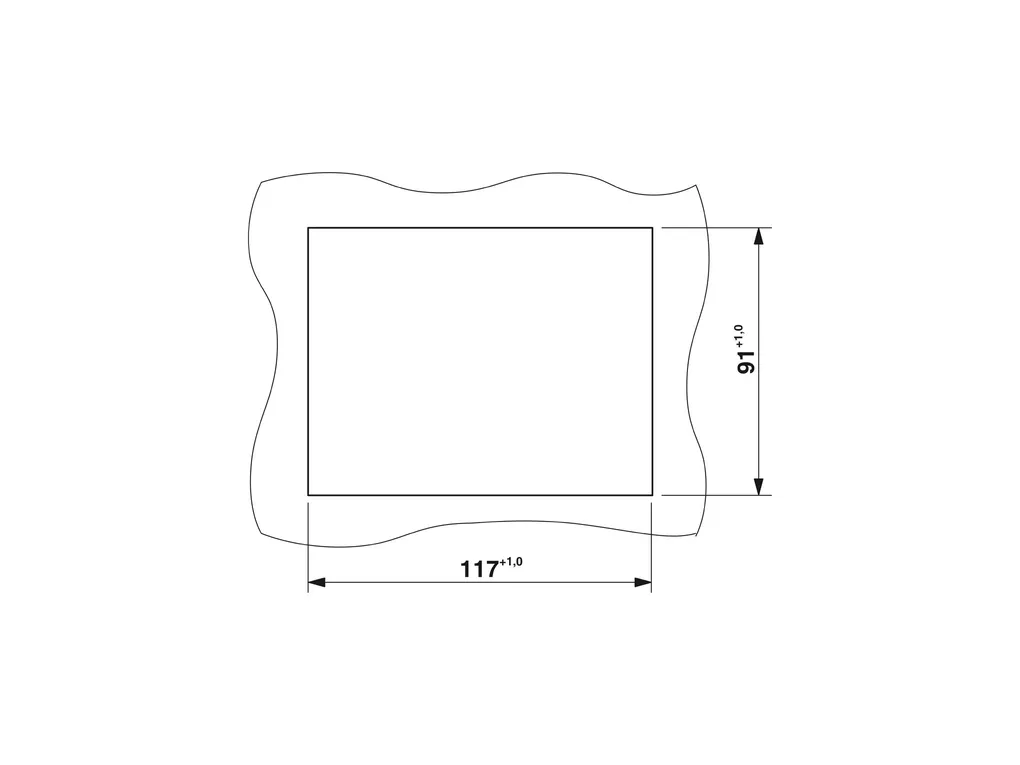

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/adaac45be88e8d46a4f566c35b106d10/-S204x204-FJPG Width: 131 mm Depth: 34.5 mm Length: 127 mm Installation dimensions Width of the assembly cutout: 117 mm Length of the assembly cutout: 91 mm |
Material specifications | Material: PBT Flammability rating according to UL 94: V0 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -30°C ... 70°C Ambient temperature (storage/transport): -30°C ... 80°C |
Mounting | Assembly instructions: Suitable for panel thicknesses 1 mm ... 5 mm |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27182806 |
ETIM | ETIM 9.0: EC000456 |
UNSPSC | UNSPSC 21.0: 31261500 |
