| Notes | General: with enclosed rotary knob |
| Product properties | Product type: Mounting frame Type: for 2 front plates |

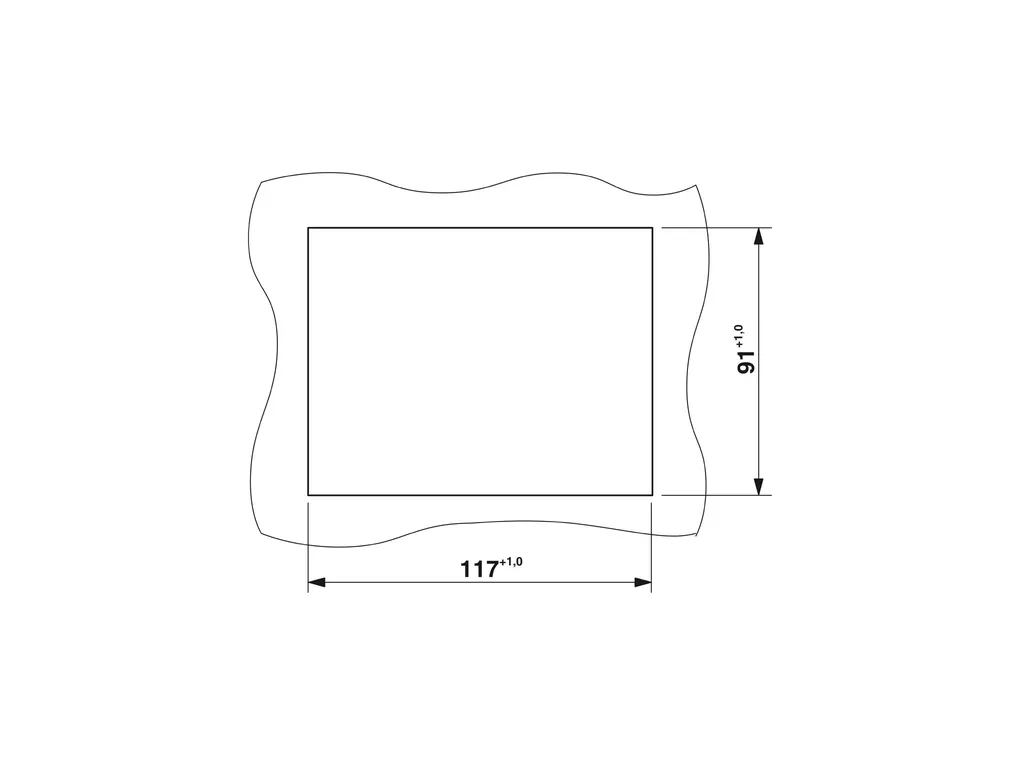

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/adaac45be88e8d46a4f566c35b106d10/-S204x204-FJPG Width: 131 mm Depth: 34.5 mm Length: 127 mm Installation dimensions Width of the assembly cutout: 117 mm Length of the assembly cutout: 91 mm |
| Material specifications | Material: PBT Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -30°C ... 70°C Ambient temperature (storage/transport): -30°C ... 80°C |
| Mounting | Assembly instructions: Suitable for panel thicknesses 1 mm ... 5 mm |
