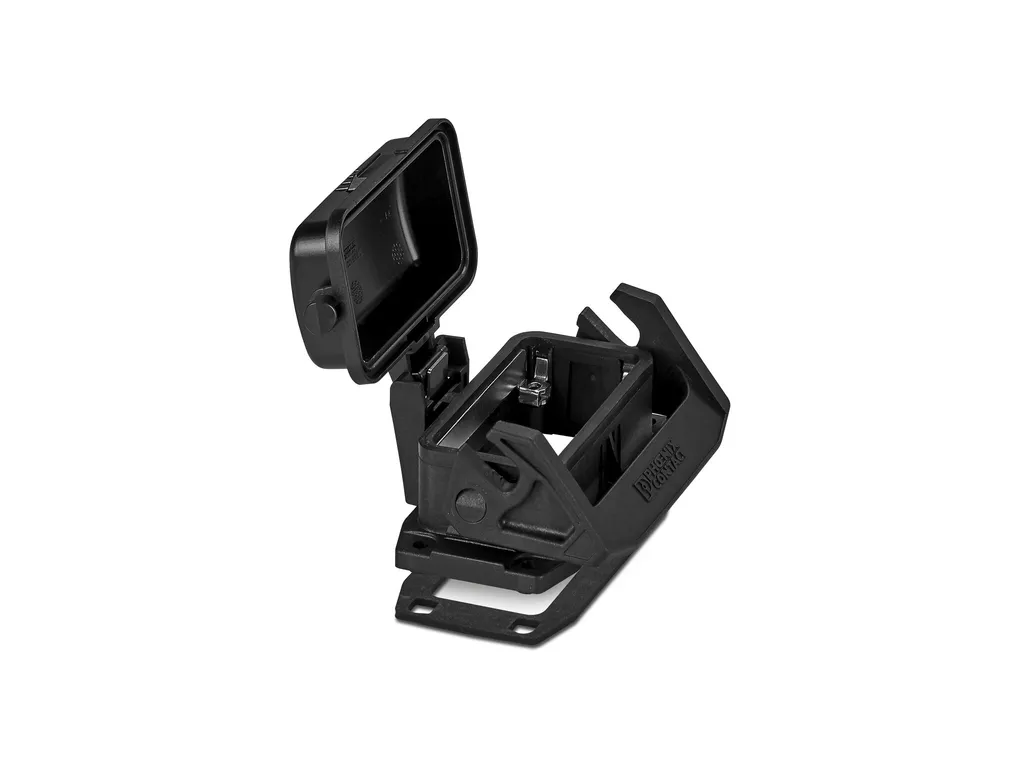

HC-EVO-B10-BWSC-PLRBK - Housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For contact inserts HC-B10, BB18, DD42, M, K8/24, HV03-I-PT, HC- 3-E...C |
Product properties | Type: B10 Product type: Housing with locking latch Product family: HC-EVO-B Application: Standard Housing type: Panel mounting base Protective cover: yes Pg screw connection: none |

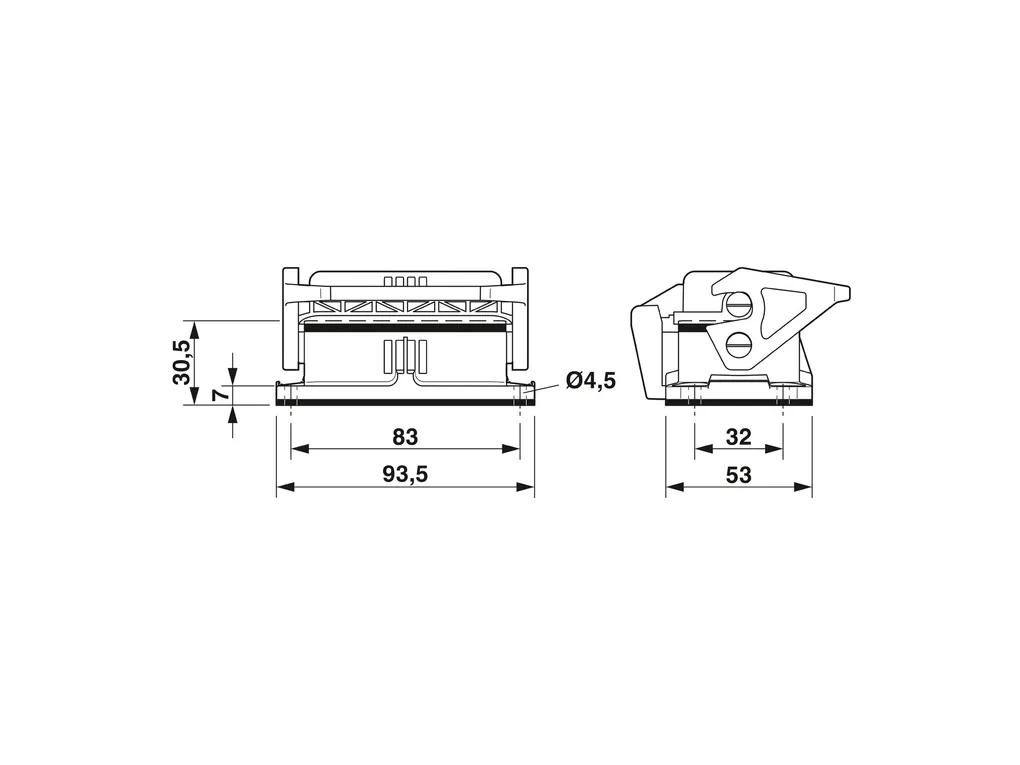

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3bc07853d44bee4eb9679fe6ff26daab/-S204x204-FJPG Width: 53 mm Height: 30.5 mm Length: 93.5 mm Drill hole distance, horizontal: 83 mm Drill hole distance, vertical: 32 mm Hole diameter: 4.5 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 65 mm |
Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) V0 (Protective cover) Seal material: NBR Material, protective cover: PC Locking latch material: PA Impact strength: IK08 Housing material: PA |
Mechanical properties | Mechanical data Locking type: Latch |
Mounting | Assembly instructions: Not for D series terminal adapters Not for HC-B 24-ADP-B..... adapter plates |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (when plugged in or with locked protective cover) Enclosure rating (NEMA): 12 (UL50e) Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
