Notes | General: For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K, HV06-I-PR, HV 6-E...C |

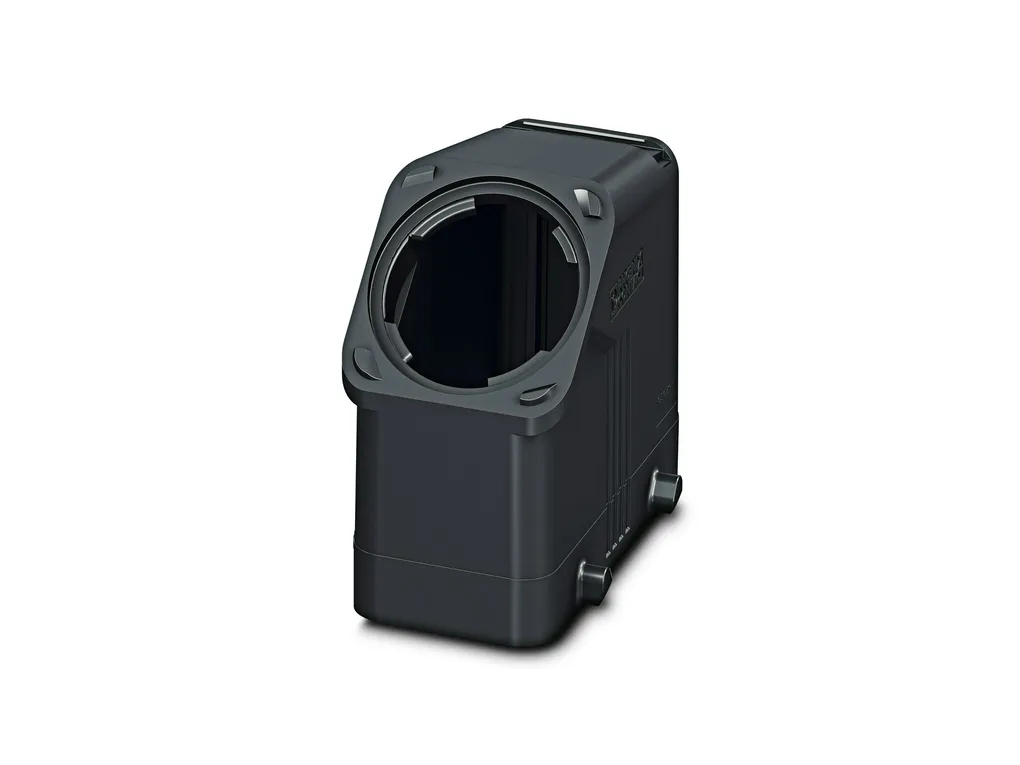

Product properties | Type: B16 Product type: Housing with locking latch Product family: HC-EVO-B Application: Standard No. of cable outlets: 1 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |

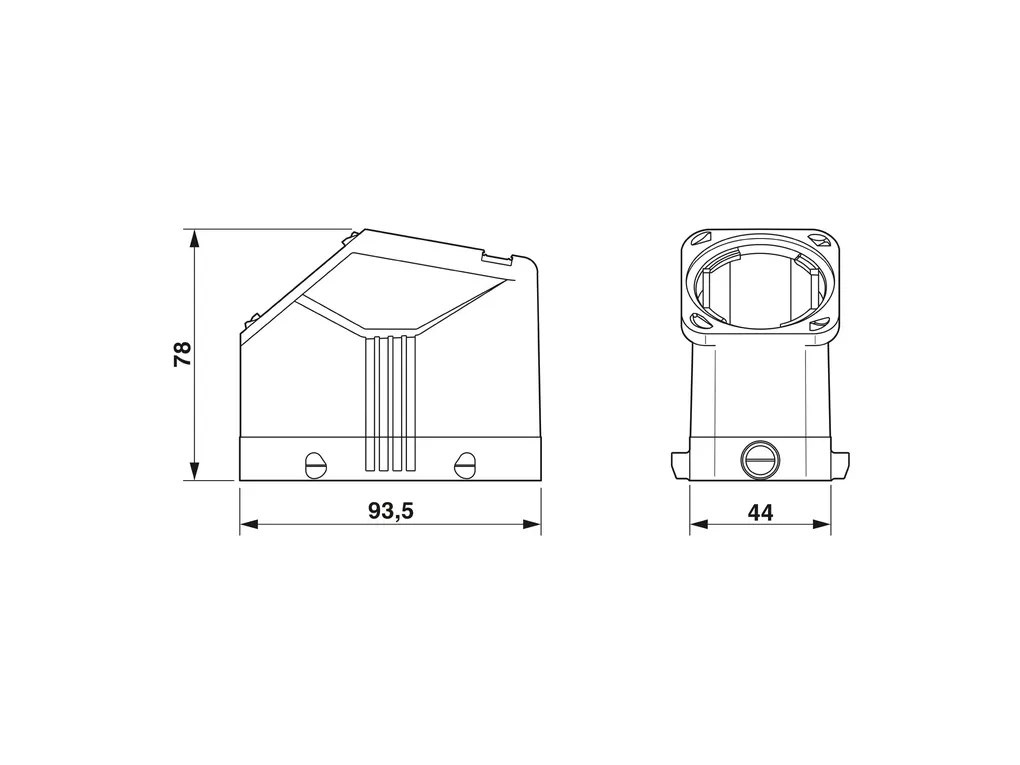

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a07269c866c95c409acf3431501dd4f4/-S204x204-FJPG Width: 44 mm Height: 78 mm Length: 93.5 mm |
Material specifications | Flammability rating according to UL 94: V0 (Housing) Impact strength: IK09 Housing material: PA |
Mechanical properties | Mechanical data Locking type: Pin |
Mounting | Assembly instructions: The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 4 sizes. It enables the creation of a straight or a lateral cable outlet. The EVO screw connection is assembled by hand or using a pipe wrench. |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
