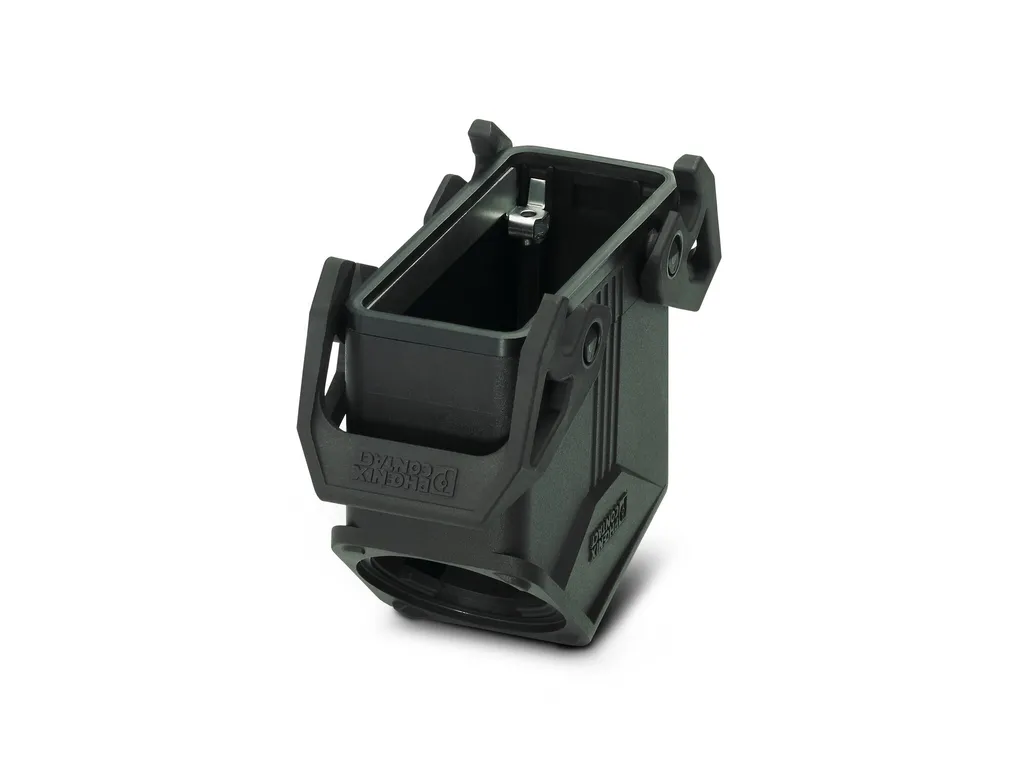

HC-EVO-B16-CHWD-PLRBK - Housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K, HV06-I-PR, HV 6-E...C |
Product properties | Type: B16 Product type: Housing with locking latch Product family: HC-EVO-B Application: Standard No. of cable outlets: 1 Housing type: Coupling housings Cable outlet: straight Pg screw connection: none |

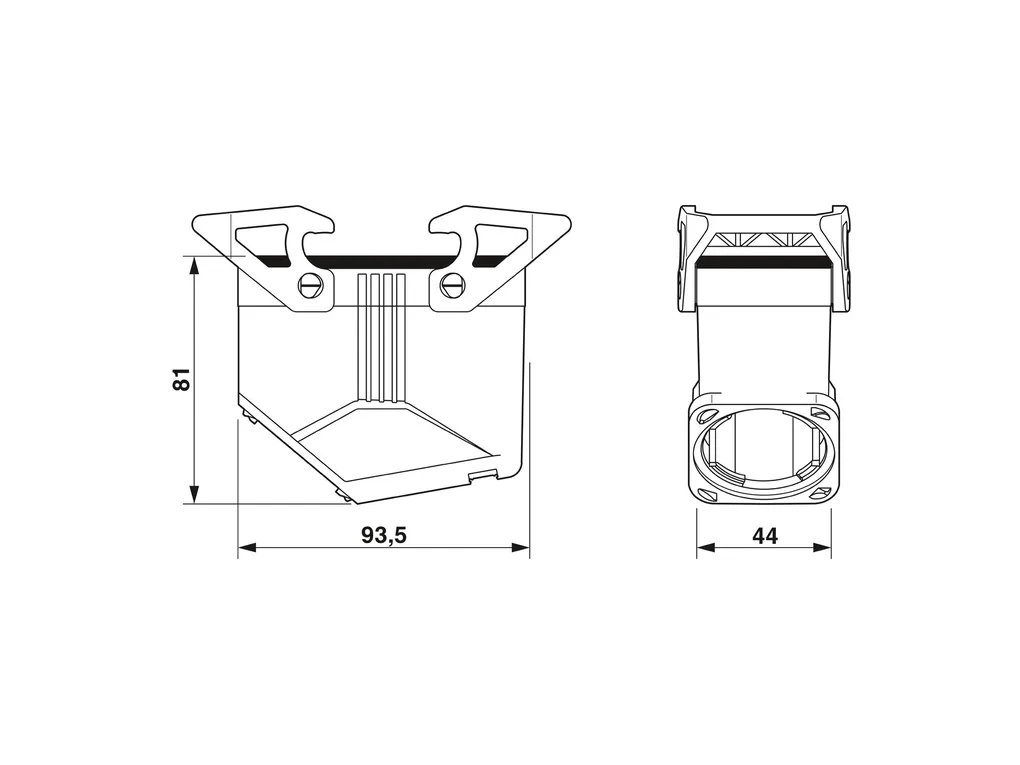

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/cd4fe4b50e8d414da45f27a0bbee6346/-S204x204-FJPG Width: 44 mm Height: 84 mm Length: 117 mm |
Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) Seal material: NBR Locking latch material: PA Impact strength: IK09 Housing material: PA |
Mechanical properties | Mechanical data Locking type: Latch |

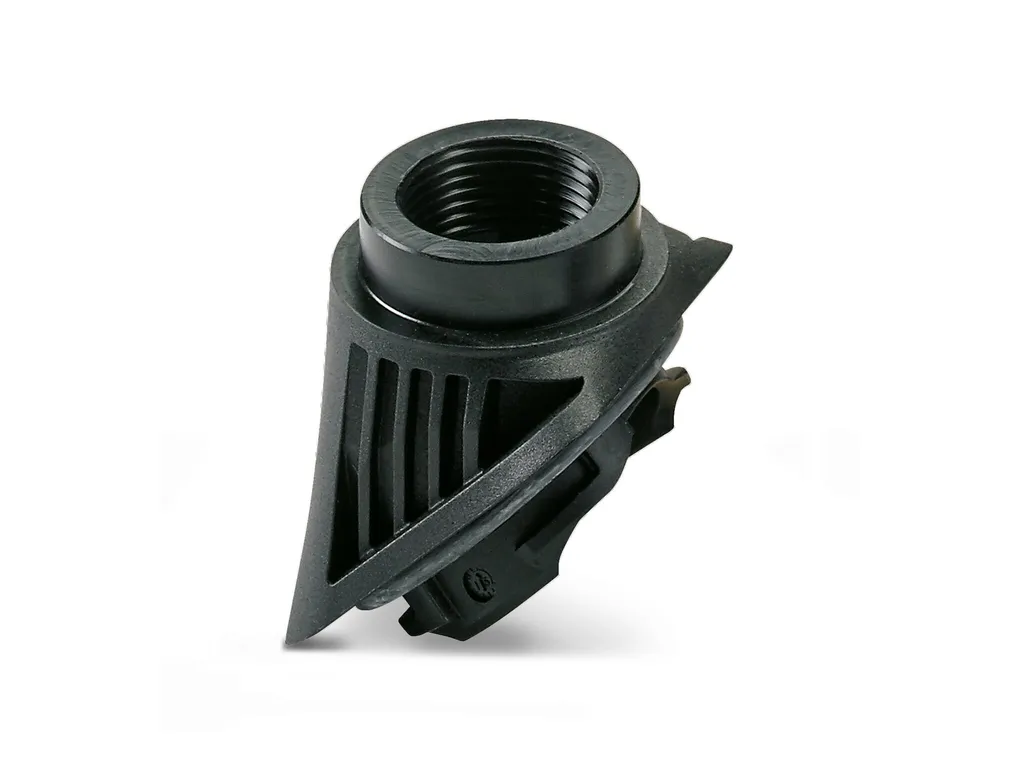

Mounting | Assembly instructions: The coupling housing must be supplemented with the EVO screw connection. The EVO screw connection is available in four sizes. The EVO screw connection is mounted with the aid of a pipe wrench, for example. |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
