HC-EVO-B24PT-BWD-HH-M32-PLRBK - Connector set
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: B24 Product type: Connector set Number of positions: 24 Connection profile: 24+PE Contact numbering: 1 - 24 No. of cable outlets: 1 Type of the screw connection: 1x M32 Housing type: Complete housing Protective cover: no Series: HC-B Cable outlet: straight Pg screw connection: none Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A |
Connection data | Connection method: Push-in connection Connection technology: Push-in connection Conductor cross section: 0.14 mm² ... 2.5 mm² (with ferrule) Connection cross section AWG: 26 ... 14 (with ferrule) Tightening torque: 0.5 Nm ... 1.7 Nm (Fixing screws for panel mounting base) Stripping length: 8 mm ... 10 mm |

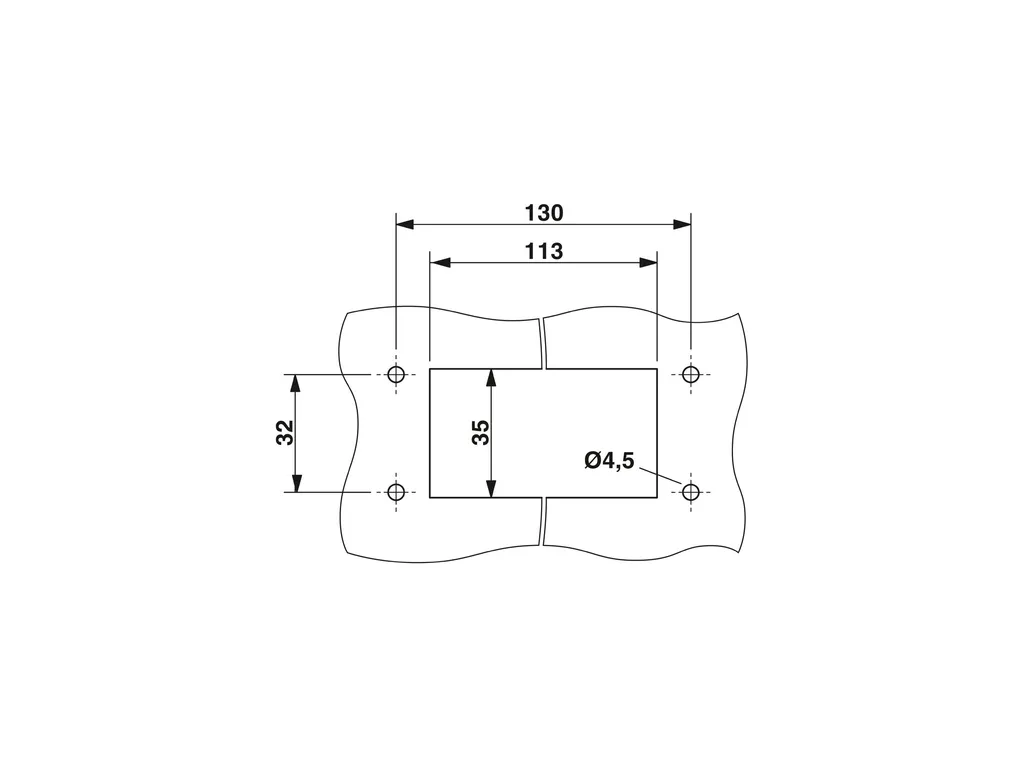

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3fed82a08fb72440817e8f854f474f40/-S204x204-FJPG Width: 53 mm Height: 130 mm Length: 140.5 mm Drill hole distance, horizontal: 129.5 mm Drill hole distance, vertical: 32 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 113 mm |
Material specifications | Flammability rating according to UL 94: V0 Seal material Profile gasket: NBR Seal material Flat gasket: NBR Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PA Locking latch material: PA Impact strength: IK09 Housing material: PA |
Cable/line | External cable diameter (): 11 mm ... 21 mm |
Mechanical properties | Mechanical data Type of the screw connection: 1x M32 Locking type: Latch Insertion/withdrawal cycles: ⥠500 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 100°C |
Mounting | Assembly instructions: Coding also using the CP-HC (1686478) coding profiles. HC-B6../ HC-B10..for two coding profiles. HC-B16../ HC-B24..for four coding profiles. Connectors may only be operated when there is no load/the power is switched off. Can be used for solid wires and stranded wires with ferrule. Connection method: Push-in connection |
ECLASS | ECLASS-11.0: 27440101 ECLASS-12.0: 27440113 ECLASS-13.0: 27440113 |
ETIM | ETIM 9.0: EC002636 |
UNSPSC | UNSPSC 21.0: 39121400 |
