| Product properties | Type: B24 Product type: Connector set Number of positions: 24 Connection profile: 24+PE Application: Power No. of cable outlets: 1 Housing type: Complete housing Seal present: yes Protective cover: no Contact material type: turned Cable outlet: lateral Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 20 A Nominal voltage UN: 500 V Nominal current IN: 16 A |
| Connection data | Connection method: Screw connection Connection technology: Screw connection Conductor cross section: 0.5 mm² ... 2.5 mm² (applies to stranded conductors with ferrules) Connection cross section AWG: 20 ... 14 Tightening torque: 0.5 Nm ... 0.8 Nm |

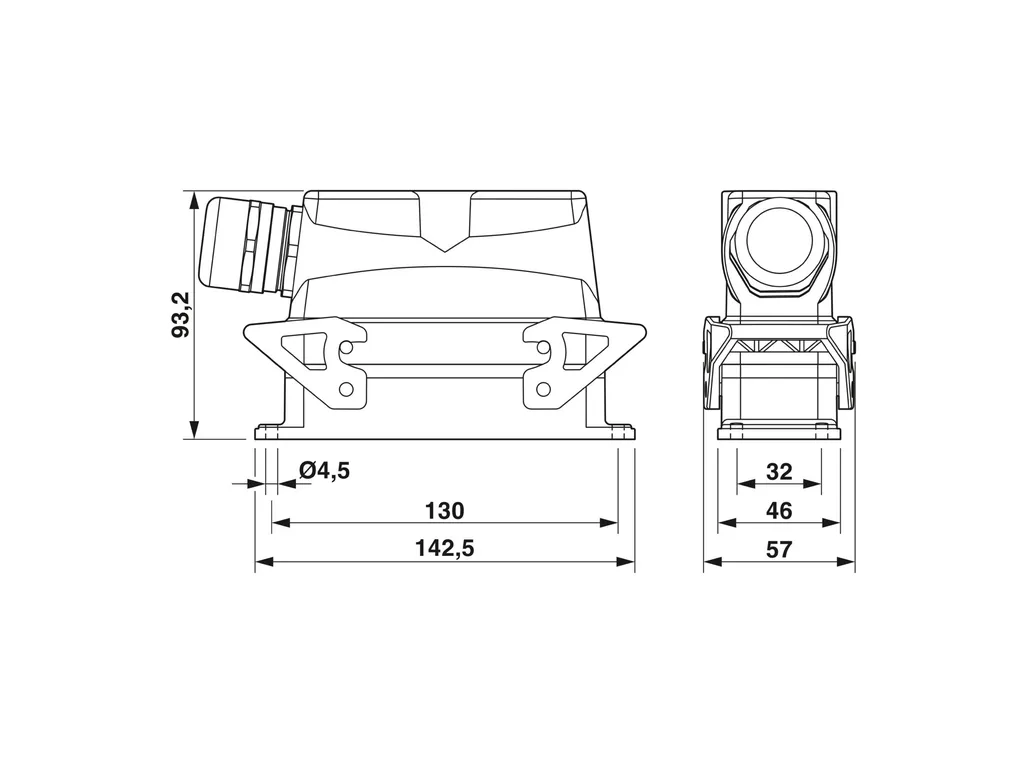

| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22622/full/b250?format=jpg Width: 43 mm Height: 92 mm Length: 140 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 113 mm |
| Material specifications | Material: die-cast aluminum Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Locking latch material: PA Impact strength: IK09 |
| Cable/line | External cable diameter (): 15 mm ... 21 mm 17 mm ... 21 mm (for UL 514 B) External cable diameter: 14 mm ... 21 mm |
| Mechanical properties | Mechanical data Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Impact strength: IK09 Ambient temperature (operation): -40°C ... 100°C |
| Mounting | Mounting type: Screw mounting Connection method: Screw connection |
| ECLASS | ECLASS-11.0: 27440101 ECLASS-12.0: 27440113 ECLASS-13.0: 27440113 |
| ETIM | ETIM 9.0: EC002636 |
| UNSPSC | UNSPSC 21.0: 39121400 |
