CES-STPG-GY-2X9 - Cable sleeve
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Cable sleeve No. of conductors: 2 |

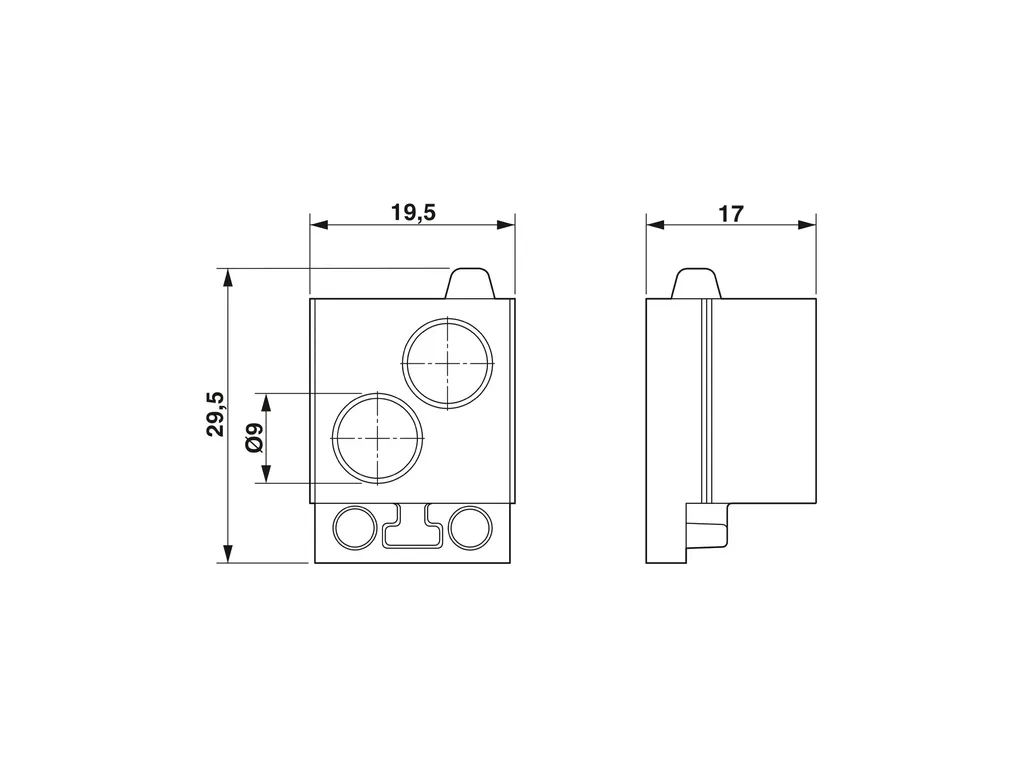

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fe2ff14016c3634eb5eccafdc2f75ac9/-S204x204-FJPG Width: 19.5 mm Height: 17 mm Length: 29.5 mm |
Material specifications | Material: SEBS Flammability rating according to UL 94: V0 |
Cable/line | External cable diameter (): 2x 8.4 mm ... 8.7 mm |
Characteristics | Seal size: small Design, Format: Round cable Design, Cable seal: slotted |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -40°C ... 80°C (static) |
ECLASS | ECLASS-11.0: 27144425 ECLASS-12.0: 27144425 ECLASS-13.0: 27144425 |
ETIM | ETIM 9.0: EC000451 |
UNSPSC | UNSPSC 21.0: 39121400 |
