| Product properties | Product type: Reducing adapter Seal present: yes Manufacturer: Jacob Manufacturer Designation: M32M25 PA/SW/FD |

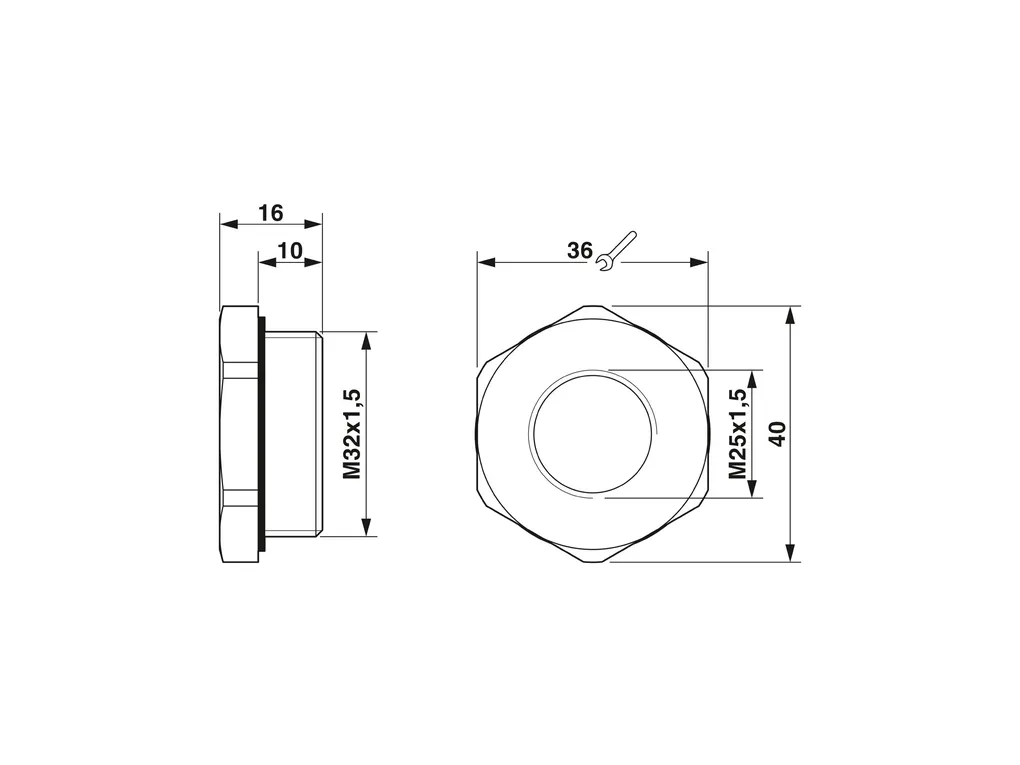

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/60aa3c6560a16b4ab87604db9a9382d6/-S204x204-FJPG Width: 40.00 mm Length: 16 mm Length of the connecting thread: 10 mm Length without connecting thread: 6 mm Diameter: 32 mm Connecting thread diameter: 32 mm Wrench size, union nut: 36 mm Hexagon angular dimension: 40 mm Thread type connection side: M32 x 1.5 Thread pitch: 1.5 mm Thread type on seal side: M25 |
| Material specifications | Material: Polyamide fiberglass reinforced Flammability rating according to UL 94: HB Seal material: NBR |
| Cable/line | Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (Depends on the screw connection used) Ambient temperature (operation): -30°C ... 100°C |
| Mounting | Assembly instructions: With corresponding screw connection: IP65 |
