| Product properties | Product type: Reducing adapter Seal present: yes Manufacturer: Jacob Manufacturer Designation: M40M25 PA/SW/FD |

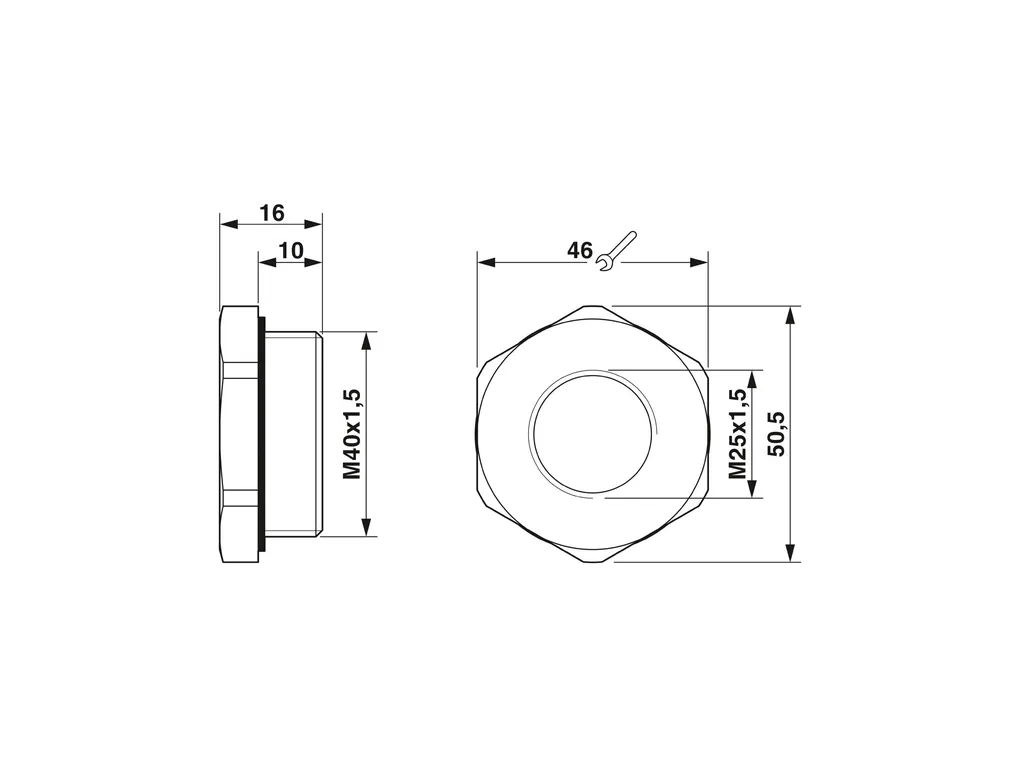

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/28e7a94a11377849ba44cda6dee90179/-S204x204-FJPG Width: 50.50 mm Length: 16 mm Length of the connecting thread: 10 mm Length without connecting thread: 6 mm Diameter: 40 mm Connecting thread diameter: 40 mm Wrench size, union nut: 46 mm Hexagon angular dimension: 50.5 mm Thread type connection side: M40 x 1.5 Thread pitch: 1.5 mm Thread type on seal side: M25 |
| Material specifications | Material: Polyamide fiberglass reinforced Flammability rating according to UL 94: HB Seal material: NBR |
| Cable/line | Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (Depends on the screw connection used) Ambient temperature (operation): -30°C ... 100°C |
| Mounting | Assembly instructions: With corresponding screw connection: IP65 |
| ECLASS | ECLASS-11.0: 27144492 ECLASS-12.0: 27144492 ECLASS-13.0: 27140806 |
| ETIM | ETIM 9.0: EC000938 |
| UNSPSC | UNSPSC 21.0: 31261500 |
