Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |

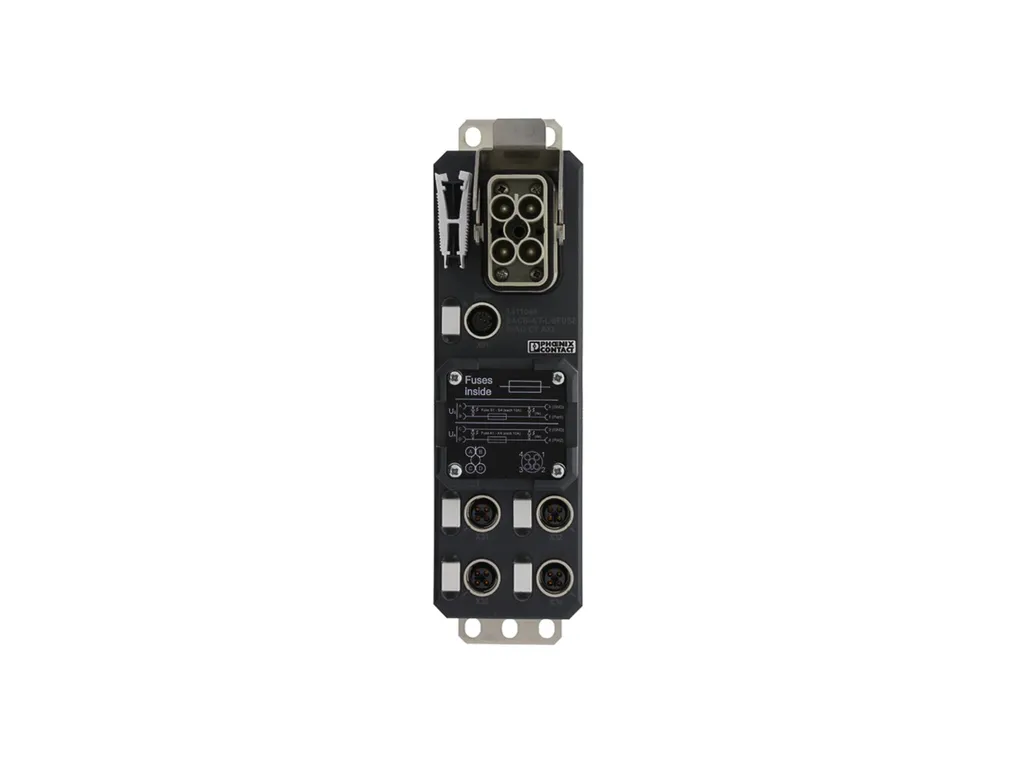

Product properties | Product type: Distributor boxes with M8 to M12 slots Number of positions: 4 Application: Power supply Number of slots: 4 Coding: T |
Material specifications | Material: Die-cast zinc PBT PUR Flammability rating according to UL 94: V0 Seal material: Viton NBR Contact material: Cu alloy Contact surface material: pre-nickel plated, gold-plated Contact carrier material: PA Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PC Material of contact surface, master cable side: Silver-plated |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/22c3793a791cbe4cac401c9e21e7695e/-S204x204-FJPG Width: 60 mm Height: 52 mm Length: 212 mm |
Connection data | Conductor connection Connection method: Plug-in master cable connection Conductor cross section Flexible power supply: 2.5 mm² ... 6 mm² Connection cross section AWG Flexible power supply: 14 ... 10 Tightening torque, cover screw: 0.6 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm |
Signaling | Status display present: Yes |
Electrical properties | Max. operating voltage Umax: 30.5 VDC Local diagnostics: Supply voltage per module Green LED Status display I/O Yellow LED Nominal voltage UN: 24 VDC Rated current, total: 70 A (at 40°C, observe the distribution of the current paths under load) Protective circuit: Overload protection for the outputs; Fuse in header Max. current carrying capacity per path: 10 A (M12 diagnostic socket for each channel max. 50 mA) Current carrying capacity per slot: 2x 9.25 A (at 40°C) |
Cable/line | Sensor/actuator connection system: M12 socket Connection method: Plug-in master cable connection External cable diameter: 9 mm ... 15.5 mm Tightening torque, cover screw: 0.6 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm Tightening torque, union nut: 5 Nm |
Standards and regulations | Standard designation: M12 connector Shock, vibration Standards/specifications: IEC 61076-2-111 EN60068-2-6 EN60068-2-27 EN60068-2-64 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 80°C |
ECLASS | ECLASS-11.0: 27440111 ECLASS-12.0: 27440111 ECLASS-13.0: 27440111 |
ETIM | ETIM 9.0: EC003558 |
UNSPSC | UNSPSC 21.0: 31251500 |
