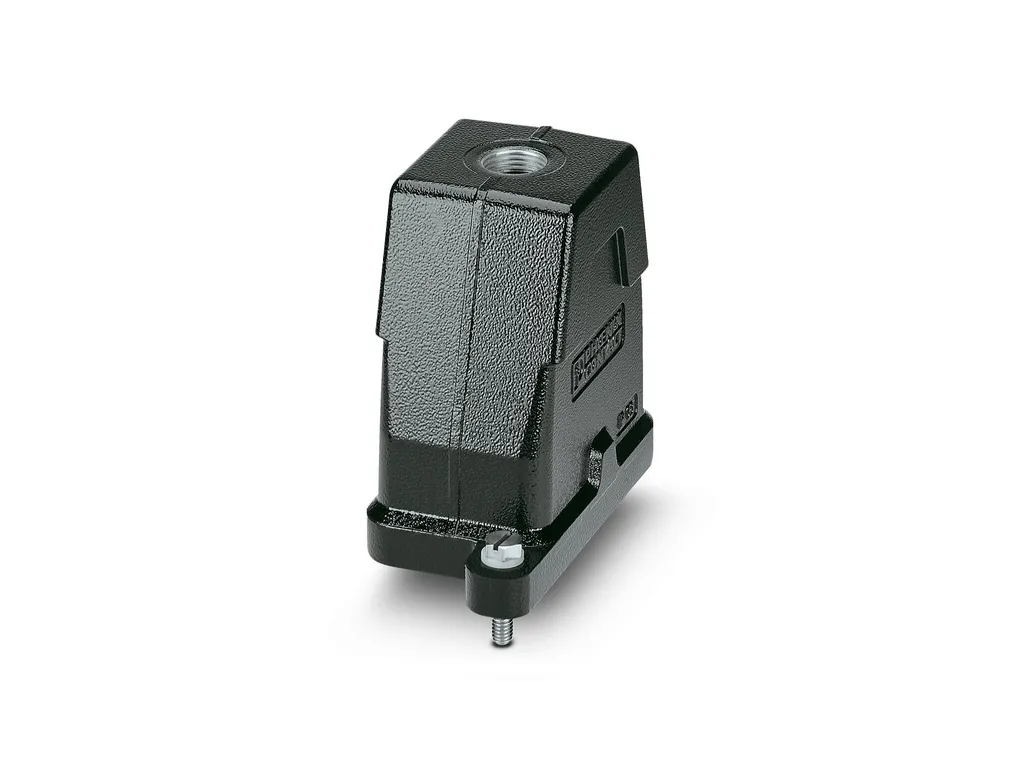

HC-HPR-B16-BFH-EMR-BK - Housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
Product properties | Type: B16 Product type: Housing with screw locking Product family: HC-HPR-B Application: Railway applications Housing type: Panel mounting base Protective cover: no Series: HPR-B16 Pg screw connection: none |
Connection data | Tightening torque: 4 Nm (Locking screw) |

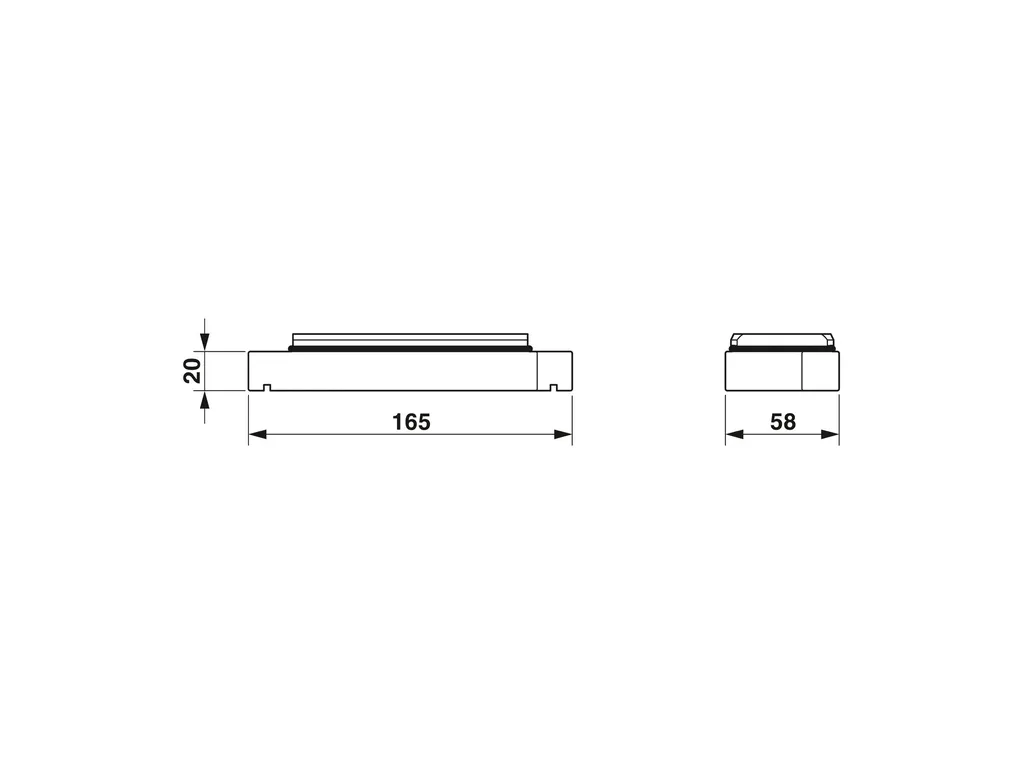

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/bc2115f9544d5046be8e8cc7b5e35cbb/-S204x204-FJPG Width: 58 mm Height: 20 mm Length: 165 mm Drill hole distance, horizontal: 103 mm Drill hole distance, vertical: 32 mm Hole diameter: 6.5 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 82 mm |
Material specifications | Seal material: NBR Housing surface material: Powder-coated, black Locking latch material: Stainless steel Material of locking screw: Stainless steel Impact strength: IK09 Housing material: die-cast aluminum |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (0.5bar / 24h) IP69 (ISO20653:2013-02) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
Mechanical properties | Mechanical data Locking type: Nut |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
