Notes | General: with seal for conductor outer and inner jacket |
Mounting | Assembly instructions: With integrated grounding cones, sealed to IP66/IP67/IP68 thanks to the use of the A-SEW-25-P-W flat gasket (item 1411284) If space is restricted at the fixing location of the screw connection, the armor can be attached at a location where there is more room to move. Final assembly can then be easily completed in the restricted space conditions at the fixing location of the screw connection. |

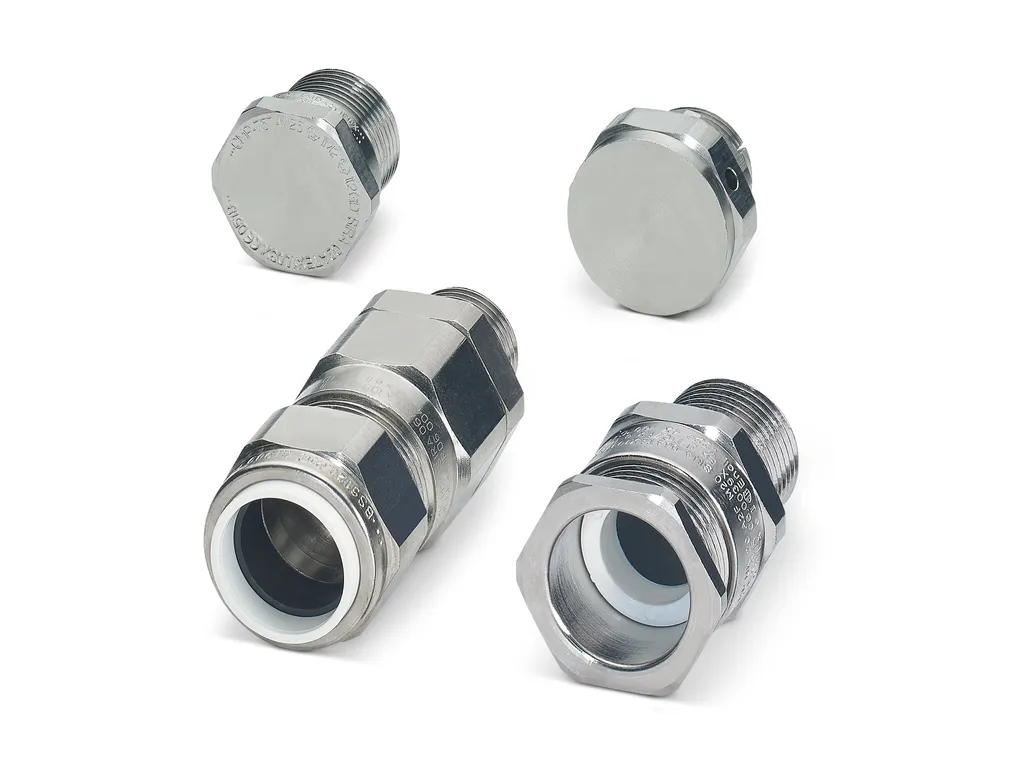

Product properties | Product type: Full screw connection Application: Ex No. of conductors: 1 Manufacturer: CMP Manufacturer Designation: 25 TRITON CDS S. STEEL GLAND Manufacturer product number: 25T3CDS1RA4 Shielded: yes Execution of the strain relief: D |
Ex data | Cable types that can be used: Depending on the material of the housing wall (SWA/AWA/PWA/STA/ASA/CY/SY/SWB) Suited for EX-applications: yes |
Characteristics | Category of shock impact: 8 Cable diameter without cable sheath: 11 mm ... 20 mm Cable diameter without armor: 11.1 mm ... 20 mm (Filler beneath the armor) Design, Strain relief: D |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fd7e361d1f67d64a8a99285ea68dd499/-S204x204-FJPG Length: 82 mm Length of the connecting thread: 15 mm Wrench size, union nut: 37.5 mm Wrench size, support: 37.5 mm Hexagon angular dimension: 41.3 mm Thread type connection side: M25 x 1.5 Thread pitch: 1.5 mm Armor thickness: 1.25 mm ... 1.6 mm (Stepped cone side (SWA/...)) 0 mm ... 1.1 mm (Grooved cone side (STA/...)) |
Material specifications | Color: Steel / stainless steel Seal material Cable seal: EPDM Material for screw connection: Stainless steel 316L |
Cable/line | External cable diameter (): 18.2 mm ... 26.2 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (using the corresponding A-SEW-...P-W flat gasket) IP67 (using the corresponding A-SEW-...P-W flat gasket) IP68 (using the corresponding A-SEW-...P-W flat gasket) Ambient temperature (operation): -60°C ... 130°C (static) |
Approvals | ATEX: Sira 13ATEX1073X Sira 13ATEX4079X Ex II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da, Ex II 3G Ex nR IIC Gc, Ex I M2, Ex d I Mb, Ex e I Mb IECEx: IECEx SIR 13.0028X Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb |
Standards and regulations | EN Ex Standards/specifications: EN60079-0, -1, -7, -15, -31 IEC Ex Standards/specifications: IEC 60079-0, -1, -7, -15, -31 Cable glands Standards/specifications: EN50262 Cable glandsâ Standards/specifications: IEC 62444 IEC Exâ Standards/specifications: IEC 61241-0:2004 |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
