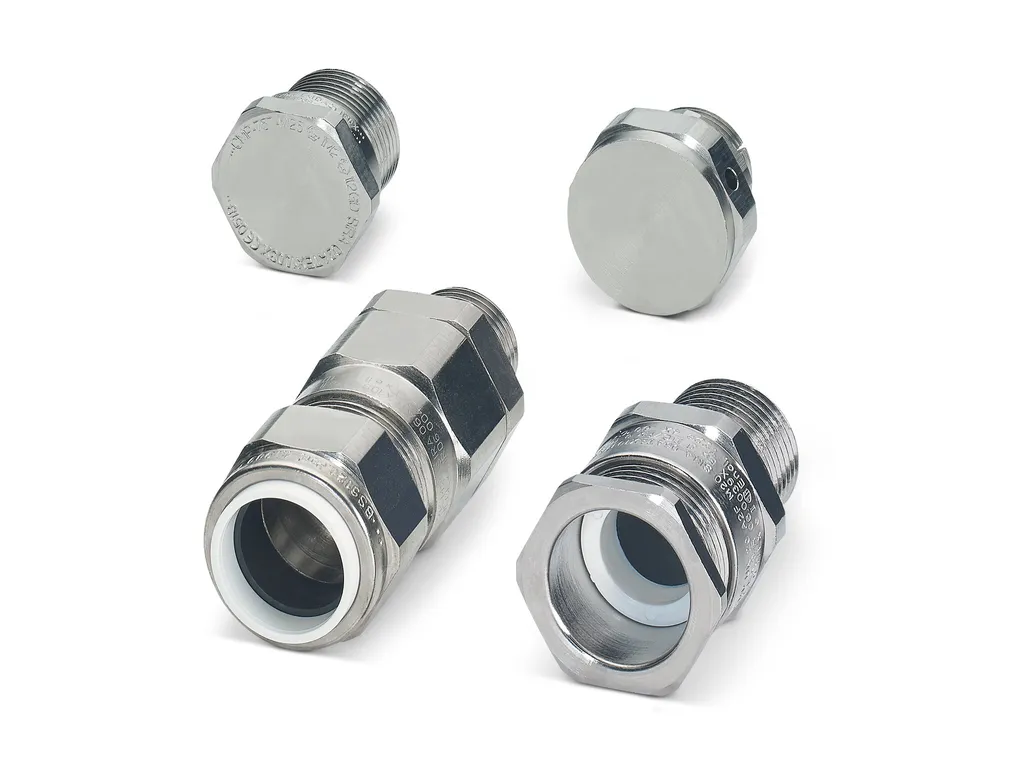

A-EXSH-M25-68L-N-S - Screw plug
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: This item must only be used with counter nut 1411243 A-INL-M25-N-S for the Ex e type of protection. |
Product properties | Product type: Plug for cable screw gland Application: Ex Manufacturer: CMP Manufacturer Designation: 757 M25 Exd/Exe NPB HEX HD STOP PLUG Manufacturer product number: 757DM35 |
Ex data | Suited for EX-applications: yes |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5f47b7140f2cc044a8779542ef54a274/-S204x204-FJPG Length: 24 mm Length of the connecting thread: 15 mm Length without connecting thread: 9 mm Diameter: 25 mm Connecting thread diameter: 25 mm Wrench size, union nut: 30 mm Hexagon angular dimension: 33 mm Thread type connection side: M25 x 1.5 Thread pitch: 1.5 mm |
Material specifications | Housing surface material: Nickel Material for screw connection: Brass, nickel-plated |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (using the corresponding A-SEW-...P-W flat gasket) IP68 (using the corresponding A-SEW-...P-W flat gasket) Ambient temperature (operation): -60°C ... 130°C |
Approvals | ATEX: Sira 01ATEX1284U Sira 02ATEX1003X Ex II 2 GD Ex d IIC & Ex e II, Ex IM2 Ex d I, Ex e I IECEx: IECEx SIR 07.0056X Ex d I / Ex e I / Ex d IIC / Ex e II, Ex tD A21 IP6X |
Standards and regulations | EN Ex Standards/specifications: EN60079-0, -1, -7 IEC Ex Standards/specifications: IEC 60079-0, -1, -7 EN Exâ Standards/specifications: EN61241-0, -1 IEC Exâ Standards/specifications: IEC 61241-0, -1 |
Mounting | Assembly instructions: Sealed to IP66/IP68 thanks to the use of the A-SEW-25-P-W flat gasket (item 1411284) |
ECLASS | ECLASS-11.0: 23111190 ECLASS-12.0: 23111190 ECLASS-13.0: 23111190 |
ETIM | ETIM 9.0: EC000032 |
UNSPSC | UNSPSC 21.0: 31261500 |
