G-INS-PG21-M68N-PNES-GY - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Mounting | Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BS-06 Shielded: no |

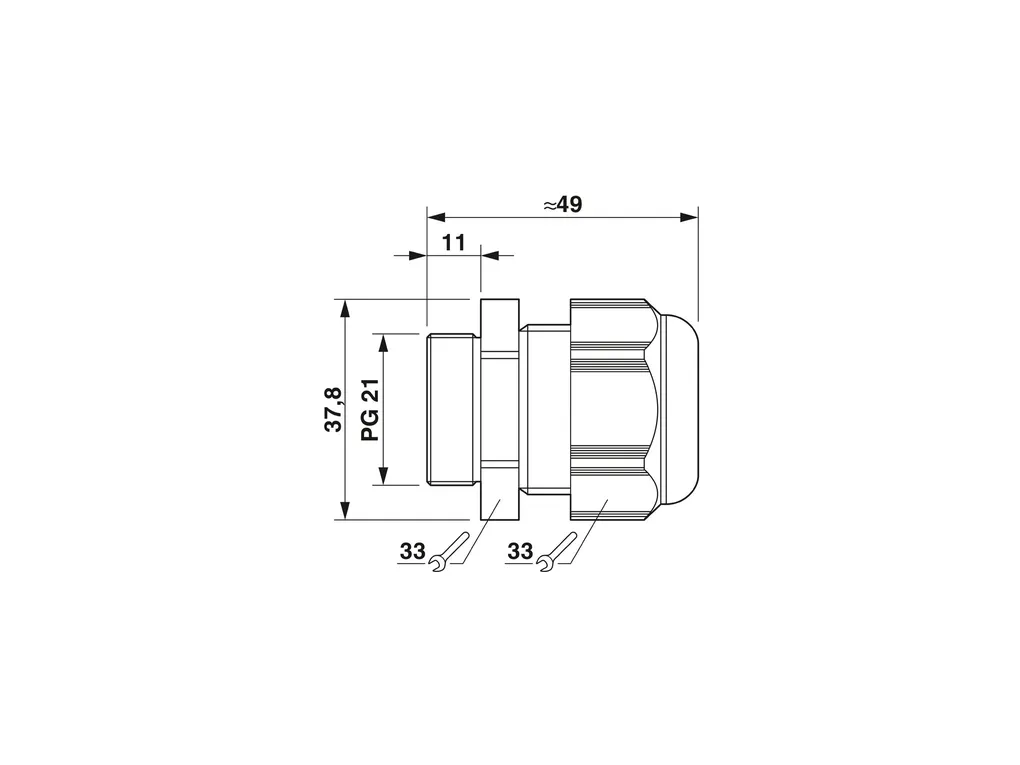

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/731e2c9777de5b4db206d74770682e3d/-S204x204-FJPG Length: 49 mm Length of the connecting thread: 11 mm Hole diameter: 28.4 mm ... 28.6 mm Wrench size, union nut: 33 mm Wrench size, support: 33 mm Hexagon angular dimension: 37.8 mm Thread type connection side: Pg21 |
Connection data | Tightening torque: 5.5 Nm ±0.5Nm (Cap nut) 3.5 Nm (Support sleeve) |
Material specifications | Material: PA Flammability rating according to UL 94: V2 Seal material Cable seal: CR Material for screw connection: PA |
Cable/line | External cable diameter (Cable 1): 13 mm ... 18 mm External cable diameter (): 13 mm ... 18 mm (for UL 514 B) Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5bar / 0.5h) Enclosure rating (NEMA): 1 4 4X 12 13 Ambient temperature (operation): -40°C ... 100°C (static) |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
