G-INS-M32-M68N-NNES-S - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Mounting | Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BMBC-E4 Shielded: no Execution of the strain relief: A |
Characteristics | Category of shock impact: 6 Design, Strain relief: A |

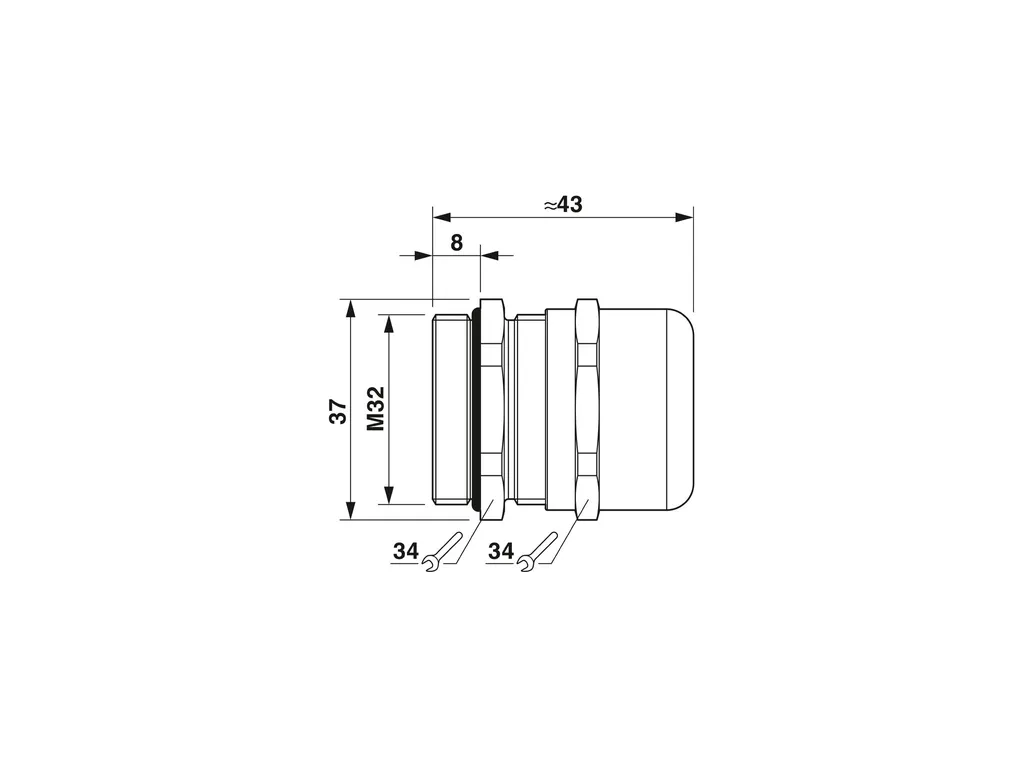

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d6252a173061cf4f93ff95d7a4c77e41/-S204x204-FJPG Length: 43 mm Length of the connecting thread: 8 mm Hole diameter: 32.1 mm ... 32.3 mm Wrench size, union nut: 34 mm Wrench size, support: 34 mm Hexagon angular dimension: 37 mm Thread type connection side: M32 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 15 Nm ±1Nm (Cap nut) 6 Nm (Support sleeve) |
Material specifications | Color: Brass Material: PA 6 Seal material O-ring: Perbunan Seal material Cable seal: CR Material for screw connection: Brass, nickel-plated |
Cable/line | External cable diameter (Cable 1): 15 mm ... 21 mm External cable diameter (): 17 mm ... 21 mm (for UL 514 B) Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5bar, 30min.) IP69 (DINEN60529 / IEC 60529) Enclosure rating (NEMA): 4X Ambient temperature (operation): -40°C ... 100°C (static) |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
