G-INS-PG9-S68N-NNES-S - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Mounting | Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BSBC-02 Shielded: no |

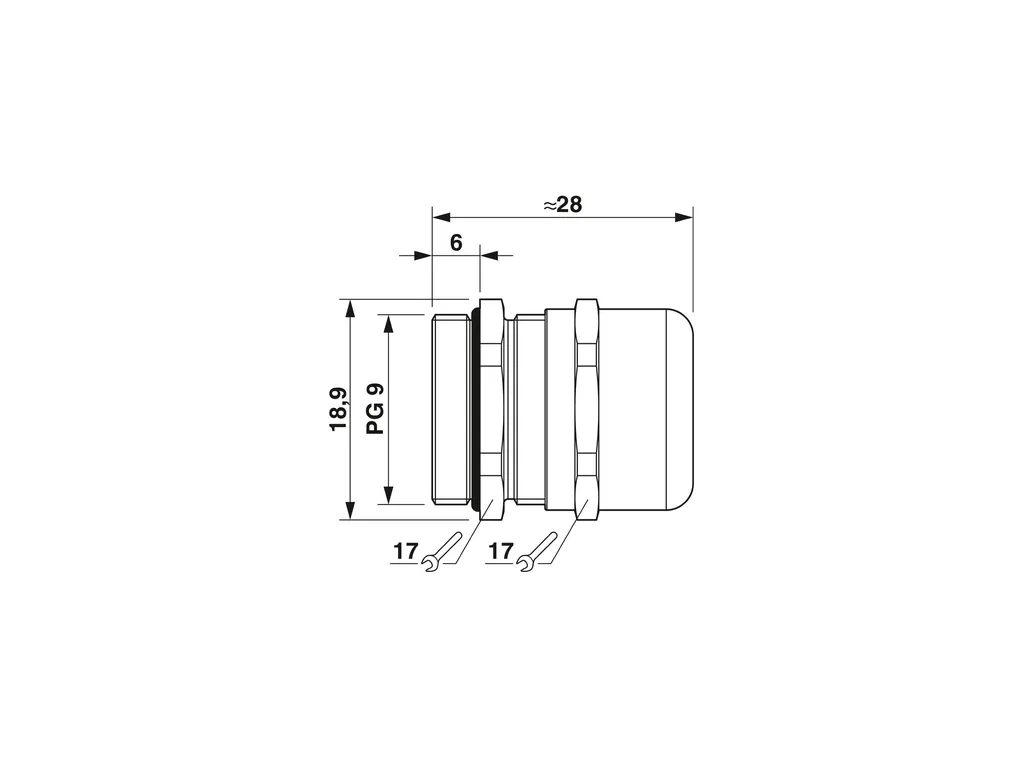

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/94b747498fdd45488d9104350e096d3b/-S204x204-FJPG Length: 28 mm Length of the connecting thread: 6 mm Hole diameter: 15.3 mm ... 15.4 mm Wrench size, union nut: 17 mm Wrench size, support: 17 mm Hexagon angular dimension: 18.9 mm Thread type connection side: Pg9 |
Connection data | Tightening torque: 6 Nm ±0.5Nm (Cap nut) 4 Nm (Support sleeve) |
Material specifications | Color: Brass Material: PA 6 Seal material O-ring: Perbunan Seal material Cable seal: CR Material for screw connection: Brass, nickel-plated |
Cable/line | External cable diameter (Cable 1): 4 mm ... 8 mm External cable diameter (): 4 mm ... 8 mm (for UL 514 B) Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5bar, 30min.) IP69 (DINEN60529 / IEC 60529) Enclosure rating (NEMA): 4X Ambient temperature (operation): -40°C ... 100°C (static) |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
