| Mounting | Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BSBC-07 Shielded: no |

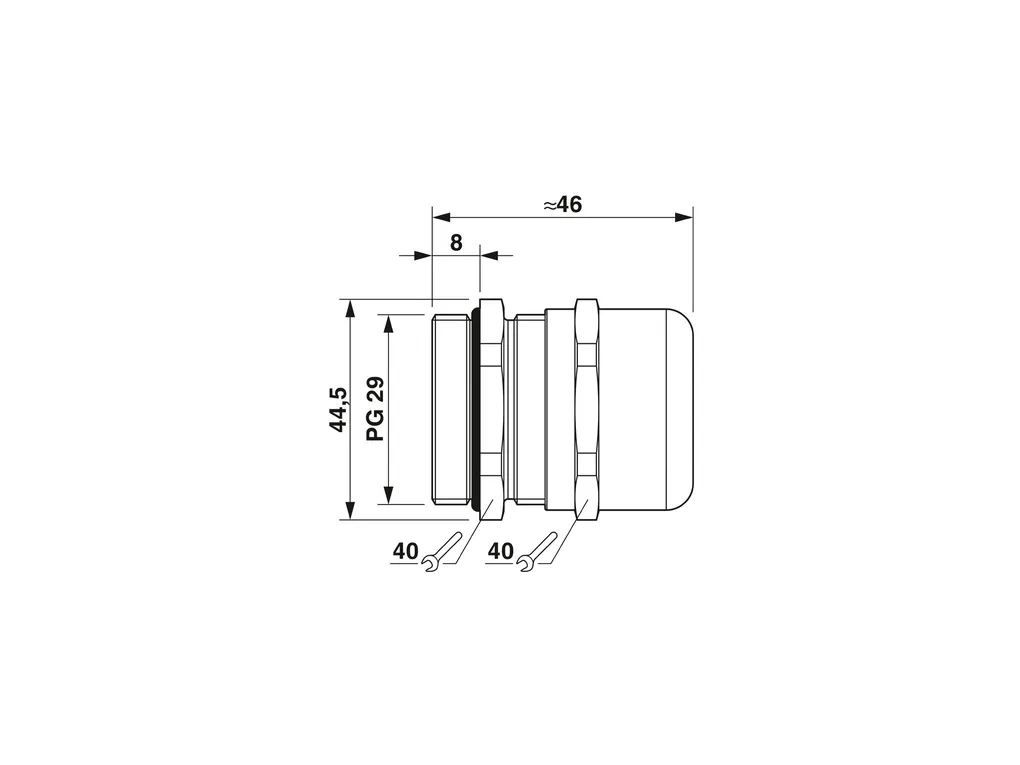

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a4264caa0c644a4893a77ee93680480d/-S204x204-FJPG Length: 46 mm Length of the connecting thread: 8 mm Hole diameter: 37.1 mm ... 37.4 mm Wrench size, union nut: 40 mm Wrench size, support: 40 mm Hexagon angular dimension: 44.5 mm Thread type connection side: Pg29 |
| Connection data | Tightening torque: 30 Nm ñ1ÃNm (Cap nut) 15 Nm (Support sleeve) |
| Material specifications | Color: Brass Material: PA 6 Seal material O-ring: Perbunan Seal material Cable seal: CR Material for screw connection: Brass, nickel-plated |
| Cable/line | External cable diameter (Cable 1): 18 mm ... 25 mm External cable diameter (): 18 mm ... 25 mm (for UL 514 B) Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5Ãbar, 30Ãmin.) IP69 (DINÃENÃ60529 / IEC 60529) Enclosure rating (NEMA): 4X Ambient temperature (operation): -40°C ... 100°C (static) |
