Mounting | Assembly instructions: Method 1 Cut the outer sheath, but do not remove it. Feed the cable through the screw connection and then remove the outer sheath. Now pull the cable back until the connection is established between the cable shield and the contact spring. Method 2 Push the braided shield back around 15 ... 20 mm over the outer sheath. Insert the cables into the screw connection until the connection is established between the cable shield and the contact spring. |
Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: Jacob Manufacturer Designation: 50.632 M/EMVD Shielded: yes Execution of the strain relief: A |
Characteristics | Category of shock impact: 6 Design, Strain relief: A |

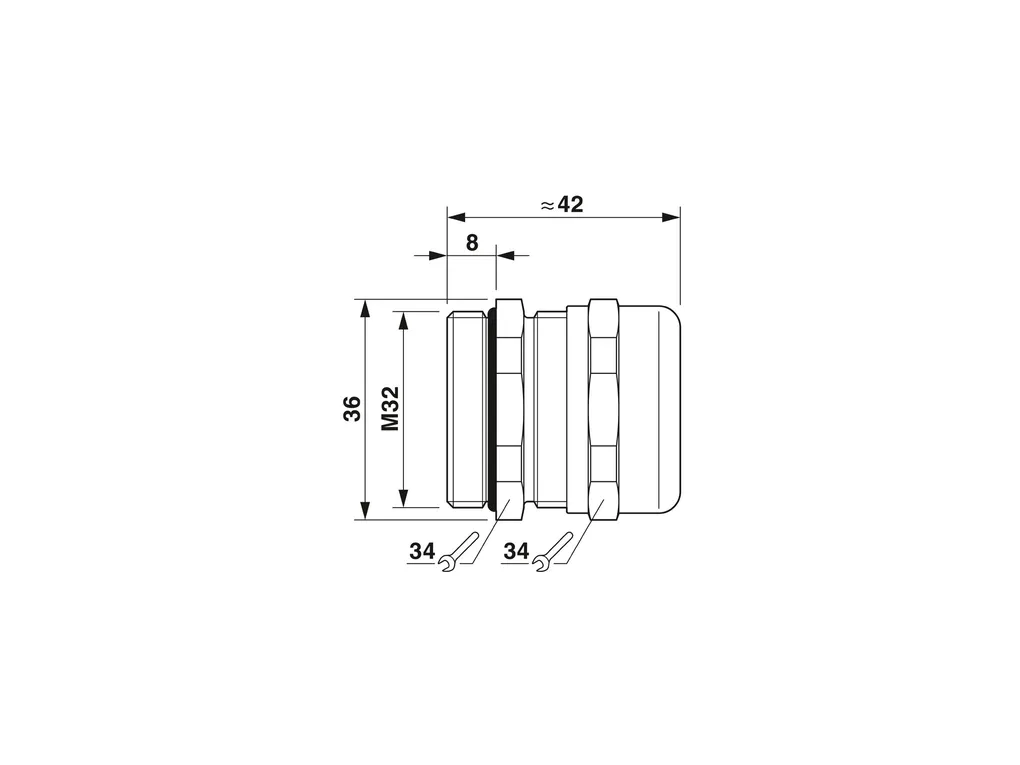

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/bb4ca005e6abf34e938600f6ccf666c7/-S204x204-FJPG Length: 38 mm Length of the connecting thread: 8 mm Hole diameter: 32.1 mm ... 32.3 mm Wrench size, union nut: 34 mm Wrench size, support: 34 mm Hexagon angular dimension: 36 mm Thread type connection side: M32 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 10 Nm (Union nut: EN 62444) 10 Nm (Support: EN 62444) |
Material specifications | Color: Brass Material: PA 6 Seal material O-ring: Perbunan Seal material Cable seal: CR/NBR Material for screw connection: Brass, nickel-plated |
Cable/line | External cable diameter (Cable 1): 14 mm ... 21 mm Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 (5bar, 30minutes) Ambient temperature (operation): -40°C ... 100°C (static) |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
