| Mounting | Assembly instructions: 1) Mount screw connection flange in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque Method 1 Cut the outer sheath, but do not remove it. Feed the cable through the screw connection and then remove the outer sheath. Now pull the cable back until the connection is established between the cable shield and the contact spring. Method 2 Push the braided shield back around 15 ... 20 mm over the outer sheath. Insert the cables into the screw connection until the connection is established between the cable shield and the contact spring. |
| Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BSEM-06 Shielded: yes |
| Characteristics | Cable diameter without cable sheath: 11 mm (Diameter of braided shield) |

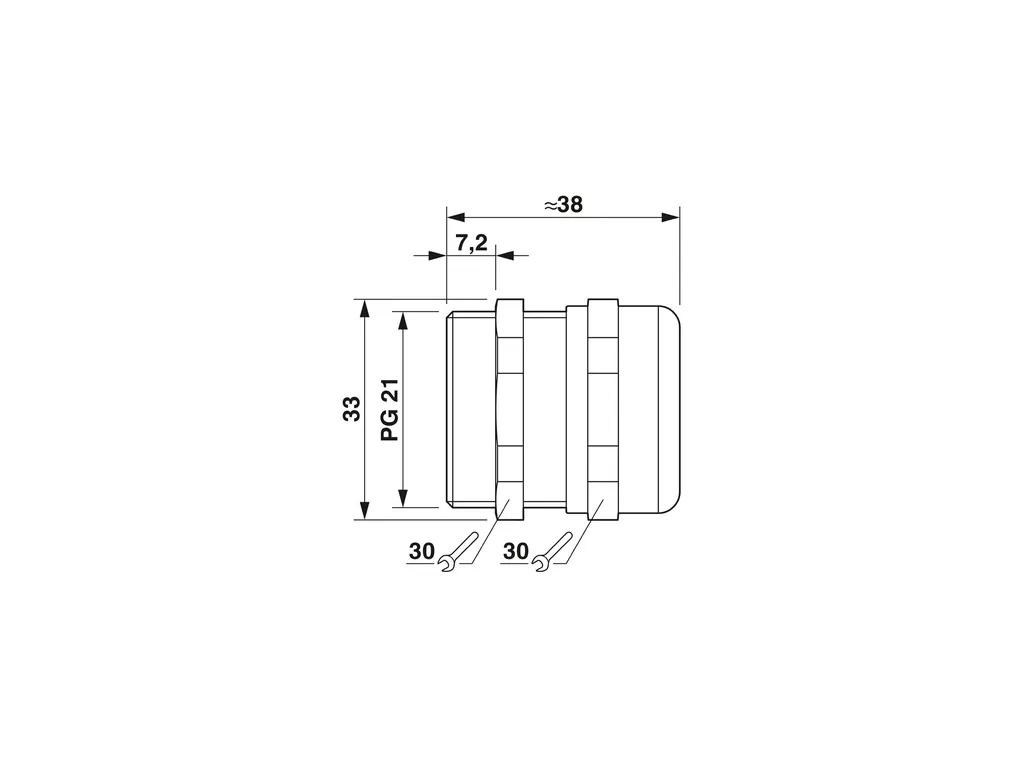

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5ef262a17cc3744a80aab80adee320c7/-S204x204-FJPG Length: 38 mm Length of the connecting thread: 7.2 mm Hole diameter: 28.4 mm ... 28.6 mm Wrench size, union nut: 30 mm Wrench size, support: 30 mm Hexagon angular dimension: 33 mm Thread type connection side: Pg21 |
| Connection data | Tightening torque: 17 Nm (Union nut: EN 62444) 6 Nm (Support: EN 62444) |
| Material specifications | Color: Brass Material: PA 6 Seal material O-ring: Perbunan Seal material Cable seal: CR Material for screw connection: Brass, nickel-plated |
| Cable/line | External cable diameter (Cable 1): 13 mm ... 18 mm Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 Ambient temperature (operation): -40°C ... 100°C (static) |
| ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
| ETIM | ETIM 9.0: EC000441 |
| UNSPSC | UNSPSC 21.0: 39121300 |
