PHOENIX CONTACT 1411216
PHOENIX CONTACTNot available

A-INL-M25-P-BK - Counter nut

Counter nut, for threads M25 x 1.5, color: jet black
Product Code: 1411216
Partner cod.: 1411216
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Product propertiesProduct type: Flat nut
Thread type: M25

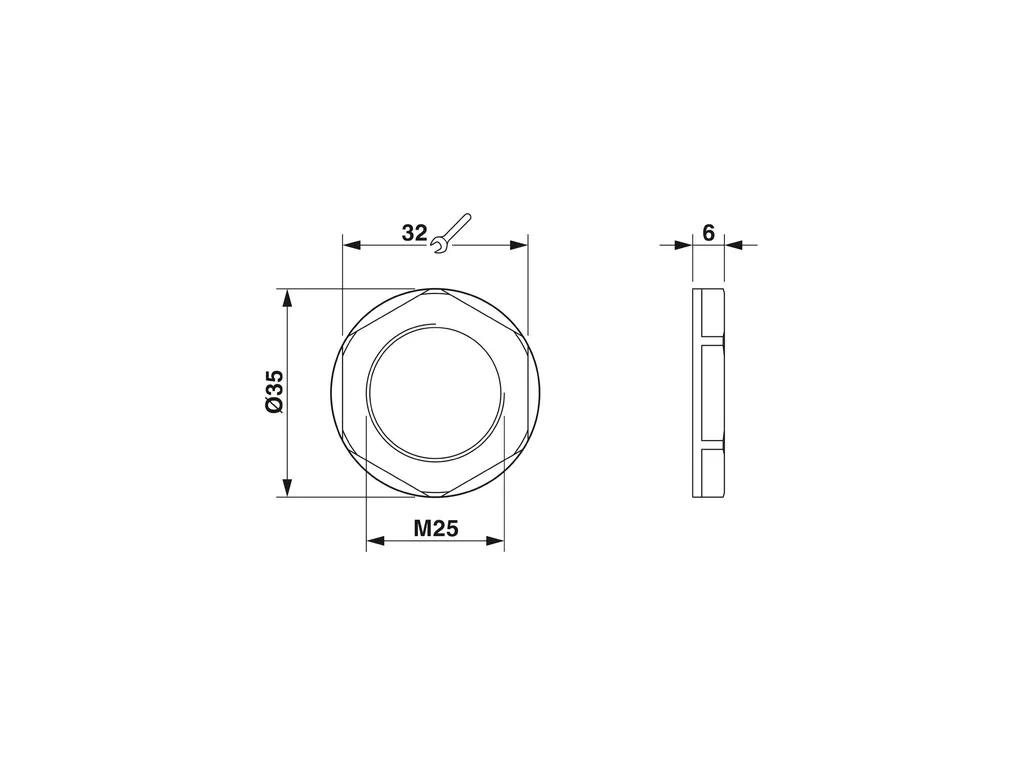

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c09ec765d97e94448d1c73ecd29bb492/-S204x204-FJPG
Length: 6 mm
Diameter: 25 mm
Connecting thread diameter: 25 mm
Wrench size, counter nut: 32 mm
Hexagon angular dimension: 35 mm
Thread type connection side: M25 x 1.5
Thread pitch: 1.5 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: V2
Cable/lineHalogen-free: yes
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 100°C
Technical Specs
ECLASSECLASS-11.0: 27144424
ECLASS-13.0: 27140807
ETIMETIM 9.0: EC000940
UNSPSCUNSPSC 21.0: 31161700
Description
Counter nut, material: PA, for threads M25 x 1.5, color: jet black RAL 9005
