| Product properties | Product type: Flat nut Thread type: M50 |

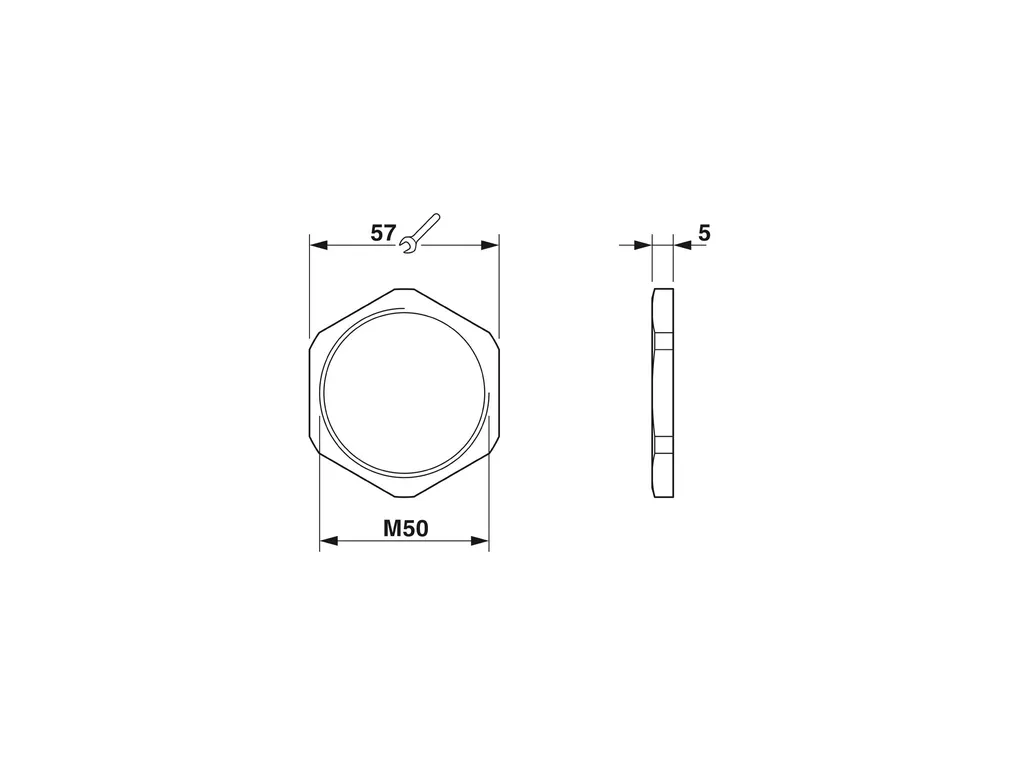

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/63619384dcd3004f8f5e4bb7c653d870/-S204x204-FJPG Length: 5 mm Diameter: 50 mm Connecting thread diameter: 50 mm Wrench size, counter nut: 57 mm Hexagon angular dimension: 65 mm Thread type connection side: M50 x 1.5 Thread pitch: 1.5 mm |
| Material specifications | Material: Brass, nickel-plated |
| Cable/line | Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -70°C ... 220°C |
