Not available
| Product properties | Product type: Flat nut Thread type: Pg7 |

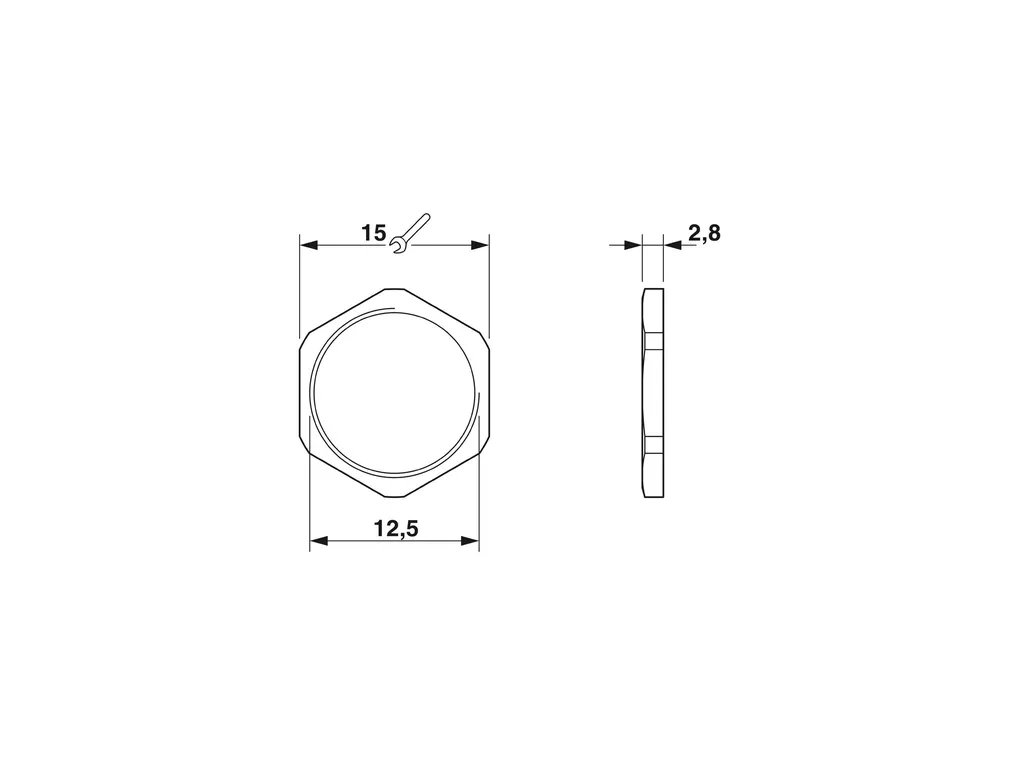

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6a82f579f97f1f4bb1462f43d4a98caf/-S204x204-FJPG Length: 2.8 mm Diameter: 12.5 mm Connecting thread diameter: 12.5 mm Wrench size, counter nut: 15 mm Hexagon angular dimension: 16.5 mm Thread type connection side: Pg7 |
| Material specifications | Material: Brass, nickel-plated |
| Cable/line | Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -70°C ... 220°C |
| ECLASS | ECLASS-11.0: 27144424 ECLASS-13.0: 27140807 |
| ETIM | ETIM 9.0: EC000940 |
| UNSPSC | UNSPSC 21.0: 31161700 |
