Industrial Automation
Product properties | Product type: Flat nut Thread type: Pg11 |

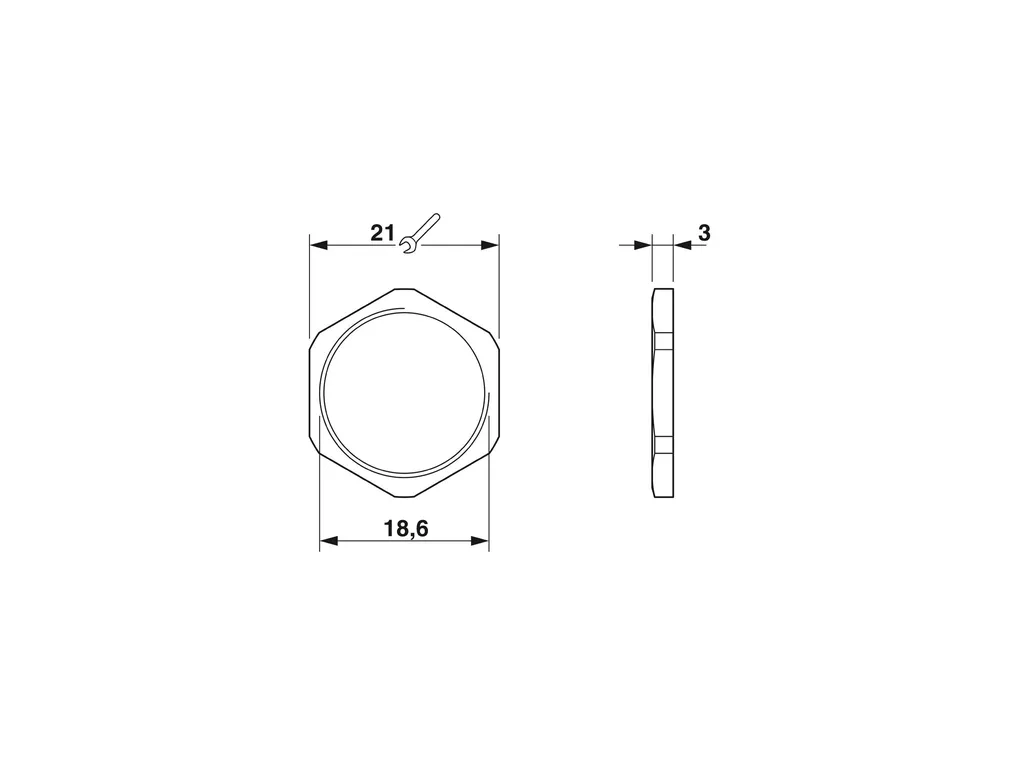

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a228061dc7c51b449121e39b6c27bb8d/-S204x204-FJPG Length: 3 mm Diameter: 18.6 mm Connecting thread diameter: 18.6 mm Wrench size, counter nut: 21 mm Hexagon angular dimension: 24 mm Thread type connection side: Pg11 |
Material specifications | Material: Brass, nickel-plated |
Cable/line | Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -70°C ... 220°C |
ECLASS | ECLASS-11.0: 27144424 ECLASS-13.0: 27140807 |
ETIM | ETIM 9.0: EC000940 |
UNSPSC | UNSPSC 21.0: 31161700 |
