| Product properties | Product type: Flat nut Thread type: Pg13.5 |

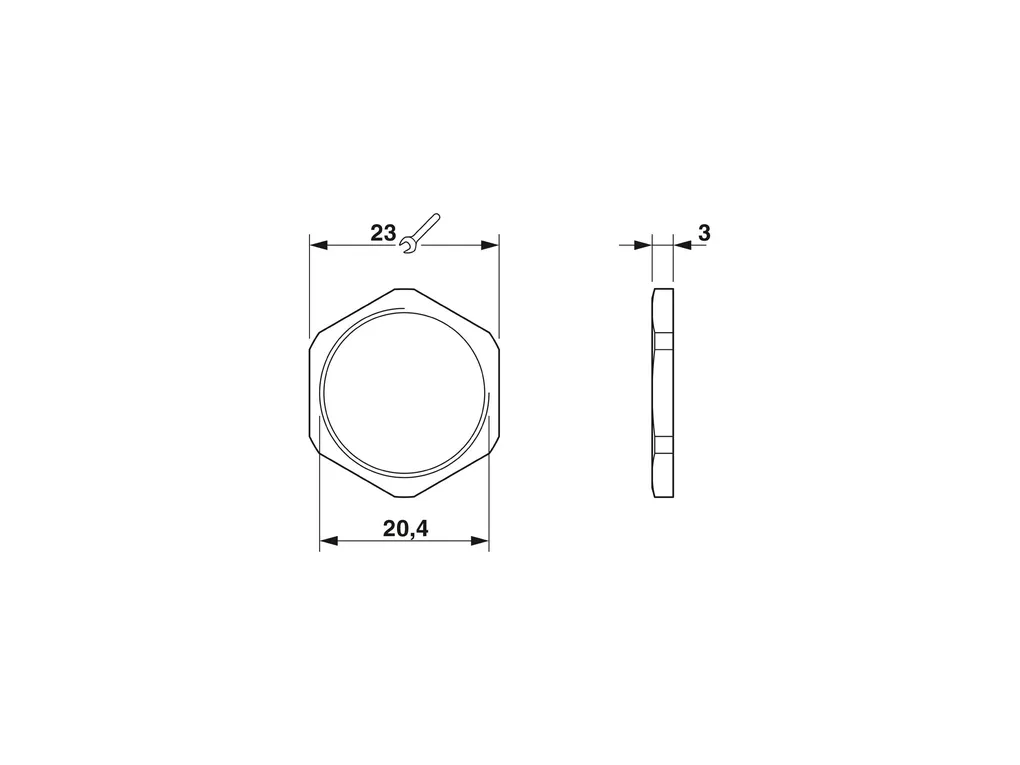

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1aec343de6acb143bea6145f62034722/-S204x204-FJPG Length: 3 mm Diameter: 20.4 mm Connecting thread diameter: 20.4 mm Wrench size, counter nut: 23 mm Hexagon angular dimension: 26 mm Thread type connection side: Pg13.5 |
| Material specifications | Material: Brass, nickel-plated |
| Cable/line | Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -70°C ... 220°C |
