A-INLE-M63-N-S - EMC nut
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Flat nut Thread type: M63 |

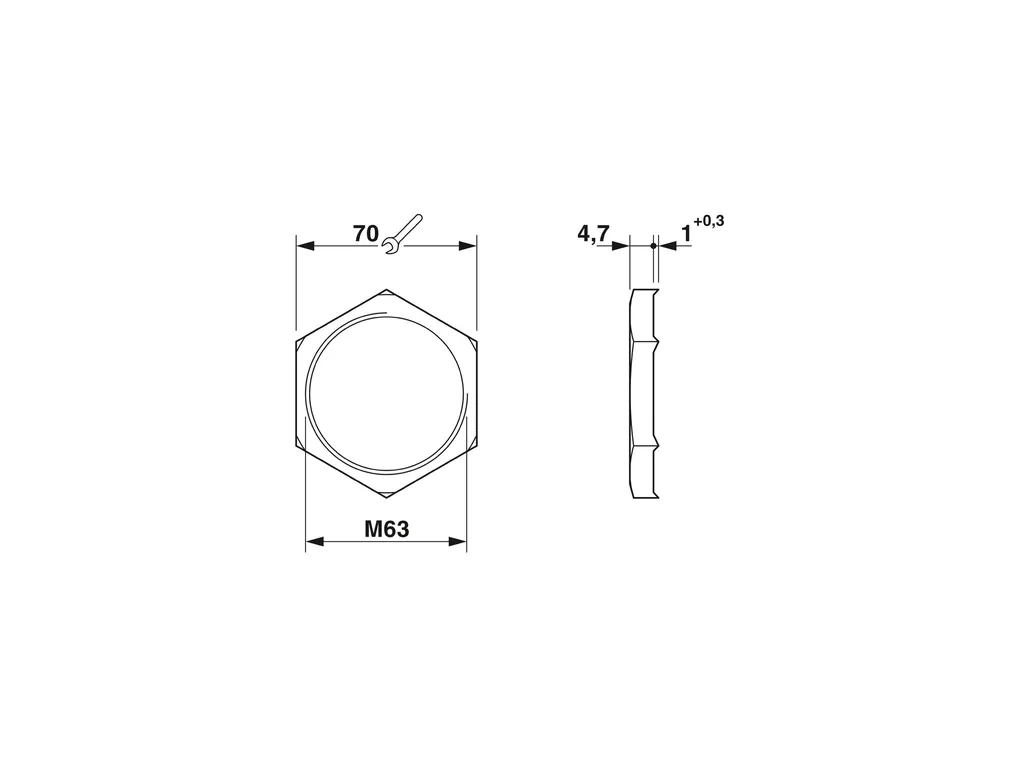

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5c90153e2f632940aa6714dec43ff4c6/-S204x204-FJPG Length: 7 mm Diameter: 63 mm Connecting thread diameter: 63 mm Wrench size, counter nut: 70 mm Hexagon angular dimension: 75 mm Thread type connection side: M63 x 1.5 Thread pitch: 1.5 mm |
Material specifications | Material: Brass, nickel-plated |
Cable/line | Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -70°C ... 220°C |
Mounting | Assembly instructions: for EMC cable glands, for removing a non-conductive surface coating |
ECLASS | ECLASS-11.0: 27144424 ECLASS-13.0: 27140807 |
ETIM | ETIM 9.0: EC000940 |
UNSPSC | UNSPSC 21.0: 31161700 |
