| Notes | General: For contact inserts HC-B24, BB46, D64, DD108, M also available as a powder-coated or color version: 1373289 HC-STA-B24-BWD-EL/.../... |
| Product properties | Type: B24 Product type: Housing with locking latch Application: Standard Housing type: Panel mounting base Pg screw connection: none |

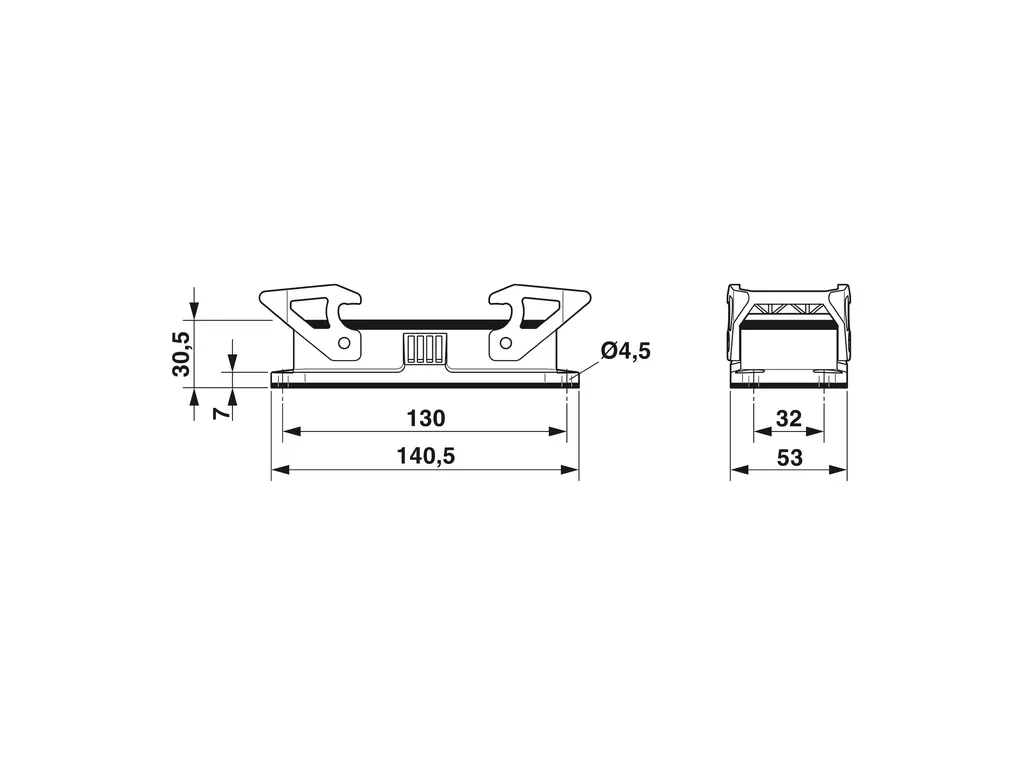

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/99eb5e73a0ce2a48b7679e763502cbdd/-S204x204-FJPG Width: 53 mm Height: 30.5 mm Length: 140.5 mm Drill hole distance, horizontal: 130 mm Drill hole distance, vertical: 32 mm Hole diameter: 4.5 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 113 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Seal material: NBR, conductive Housing surface material: uncoated Locking latch material: Polyamide Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
| ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
| ETIM | ETIM 9.0: EC000437 |
| UNSPSC | UNSPSC 21.0: 31261500 |
