Notes | General: For contact inserts HC-D25, A16 |
Product properties | Type: D25 Product type: Housing with locking latch Product family: HC-EVO-D Application: Standard Housing type: Panel mounting base Protective cover: no Shielded: no Pg screw connection: none |

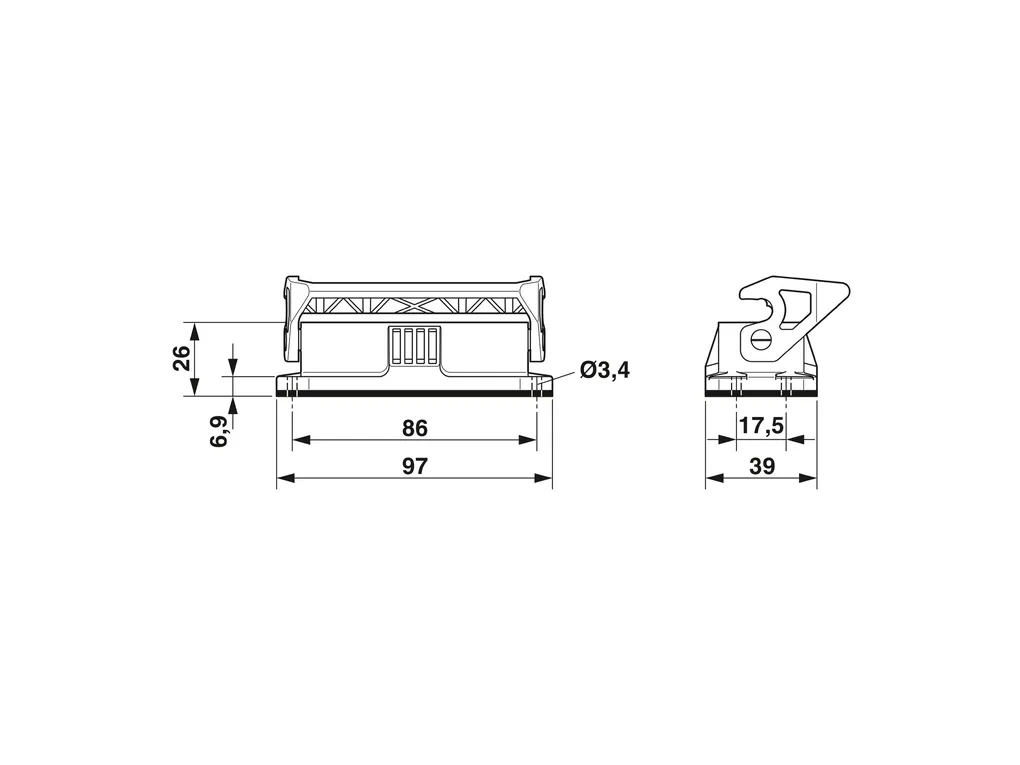

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6b2d6a59c56c8d418e194c2566057199/-S204x204-FJPG Width: 39 mm Height: 26 mm Length: 97 mm Drill hole distance, horizontal: 86 mm Drill hole distance, vertical: 17.5 mm Hole diameter: 3.3 mm Installation dimensions Width of the assembly cutout: 24 mm Length of the assembly cutout: 74 mm |
Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) Seal material: NBR Locking latch material: PA Impact strength: IK08 Housing material: PA |
Mechanical properties | Mechanical data Locking type: Latch |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (UL50e) Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
