PHOENIX CONTACT 1411517
PHOENIX CONTACTNot available

HC-B 16-TMS-SD-IP66 - Protective cover

HEAVYCON ADVANCE, IP66, B16 protective cover, for panel mounting side, with screw locking, with retaining cord, diameter of retaining cord eyelet: 3mm
Product Code: 1411517
Partner cod.: 1411517
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Product propertiesType: B16
HC-ADVANCE protective cover
Product type: Protective cover
Housing type: Protective cover
Seal present: yes

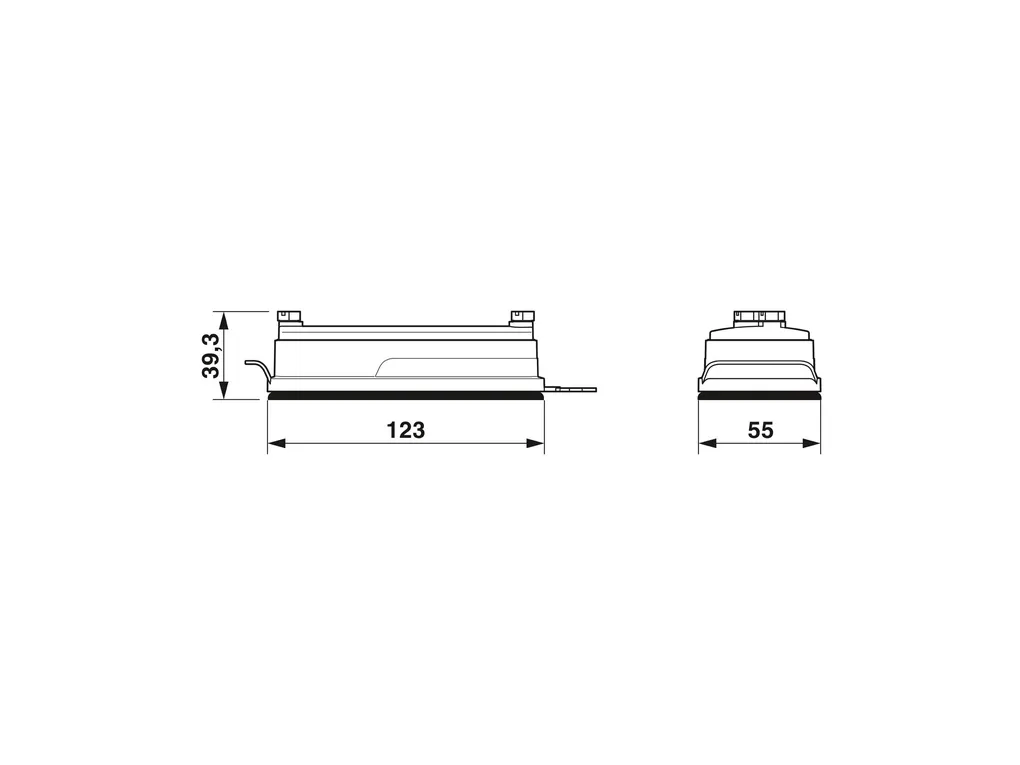

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/93bb1e4bfd86e7409d760efeac3b4356/-S204x204-FJPG
Width: 55 mm
Height: 39.3 mm
Length: 123 mm
Diameter: 3.5 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: V0
Seal material: NBR
Material, protective cover: PA
Locking latch material: Stainless steel
Material for screw connection: Stainless steel
Mechanical propertiesMechanical data
Locking type: Screw
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
Ambient temperature (operation): -20°C ... 100°C
MountingAssembly instructions: Tightening torque of locking screw: 3 Nm
Technical Specs
ECLASSECLASS-11.0: 27440208
ECLASS-12.0: 27440208
ECLASS-13.0: 27440208
ETIMETIM 9.0: EC002314
UNSPSCUNSPSC 21.0: 39121400
Description
HEAVYCON ADVANCE, IP66, B16 protective cover, for panel mounting side, with screw locking, with retaining cord, diameter of retaining cord eyelet: 3 mm
