HC-HPR-B06-HHWH-1STM20-EM-BK - Housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For contact inserts HC-B6, BB10, DD24, M Tall housings for extra large wiring space |
Product properties | Type: B6 Product type: Housing with screw locking Product family: HC-HPR-B Application: Railway applications No. of cable outlets: 1 Type of the screw connection: 1x M20 Housing type: Sleeve housing Protective cover: no Series: HPR-B6 Cable outlet: lateral Pg screw connection: none |

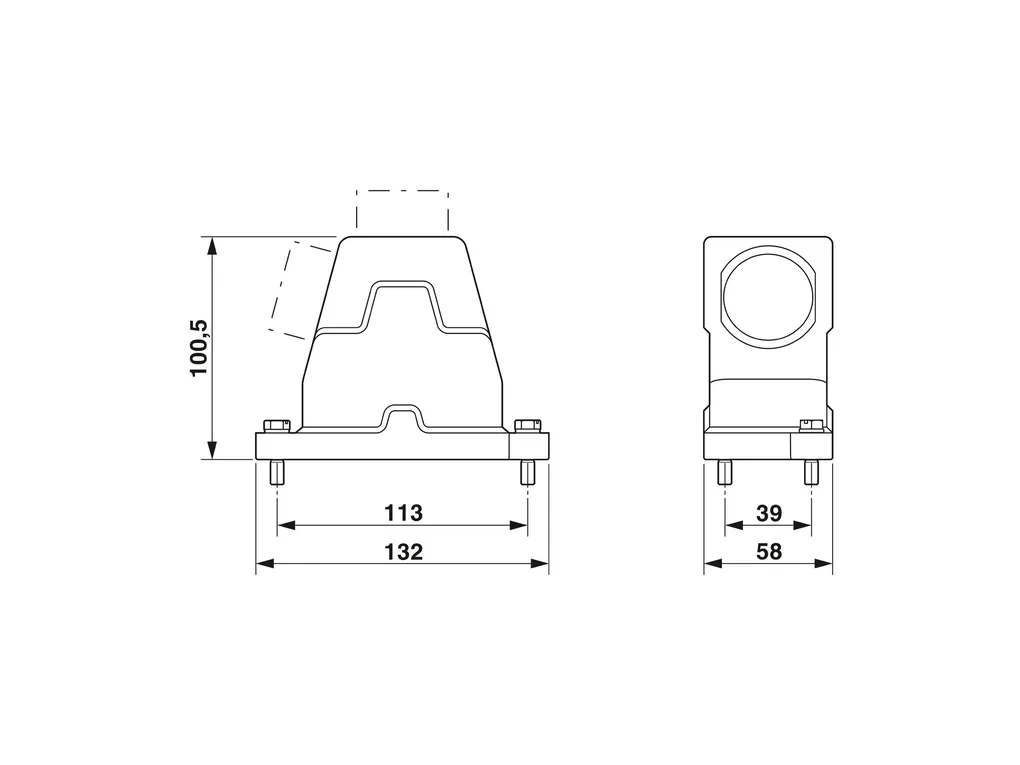

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c559ee76f7946e4b80f67ff745a5f5ef/-S204x204-FJPG Width: 58 mm Height: 100.5 mm Length: 132 mm |
Material specifications | Housing surface material: Powder-coated, black Locking latch material: Stainless steel Impact strength: IK09 Housing material: die-cast aluminum |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (0.5bar / 24h) IP69 (ISO20653:2013-02) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
Mechanical properties | Mechanical data Type of the screw connection: 1x M20 Locking type: Screw |
Mounting | Assembly instructions: M6 locking screw, slotted hexagon head screw (SW10), tightening torque: 4 Nm |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
