| Notes | General: For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Product properties | Type: B10 Product type: Housing with screw locking Product family: HC-HPR-B Application: Railway applications No. of cable outlets: 1 Type of the screw connection: 1x M25 Housing type: Sleeve housing Protective cover: no Series: HPR-B10 Cable outlet: lateral Pg screw connection: none |

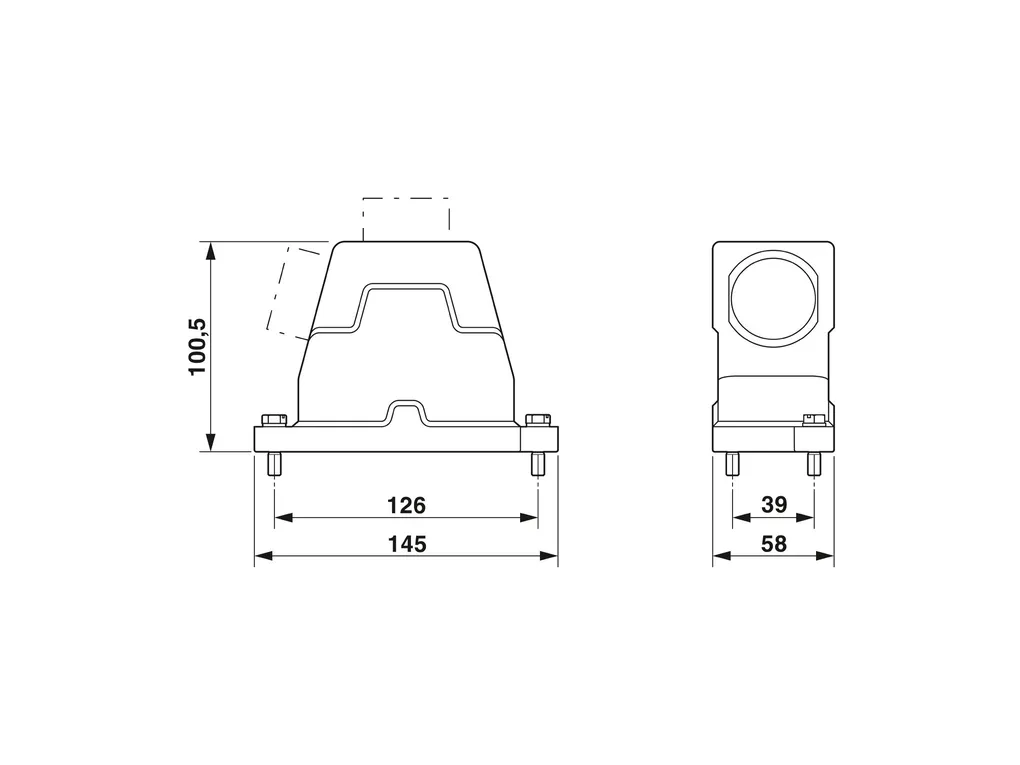

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1f2031852cb0d04087a8fc7171b5cd3f/-S204x204-FJPG Width: 58 mm Height: 100.5 mm Length: 145 mm |
| Material specifications | Housing surface material: Powder-coated, black Locking latch material: Stainless steel Impact strength: IK09 Housing material: die-cast aluminum |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (0.5bar / 24h) IP69 (ISO20653:2013-02) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
| Mechanical properties | Mechanical data Type of the screw connection: 1x M25 Locking type: Screw |
| Mounting | Assembly instructions: M6 locking screw, slotted hexagon head screw (SW10), tightening torque: 4 Nm |
| ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
| ETIM | ETIM 9.0: EC000437 |
| UNSPSC | UNSPSC 21.0: 31261500 |
