| Notes | General: For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
| Product properties | Type: B16 Product type: Housing with screw locking Product family: HC-HPR-B Application: Railway applications No. of cable outlets: 2 Type of the screw connection: 2x M40 Housing type: Box mounting bases Protective cover: no Series: HPR-B16 Cable outlet: lateral Pg screw connection: none |
| Connection data | Tightening torque: 10 Nm ... 15 Nm (for M8 mounting screws on the surface-mount housing) |

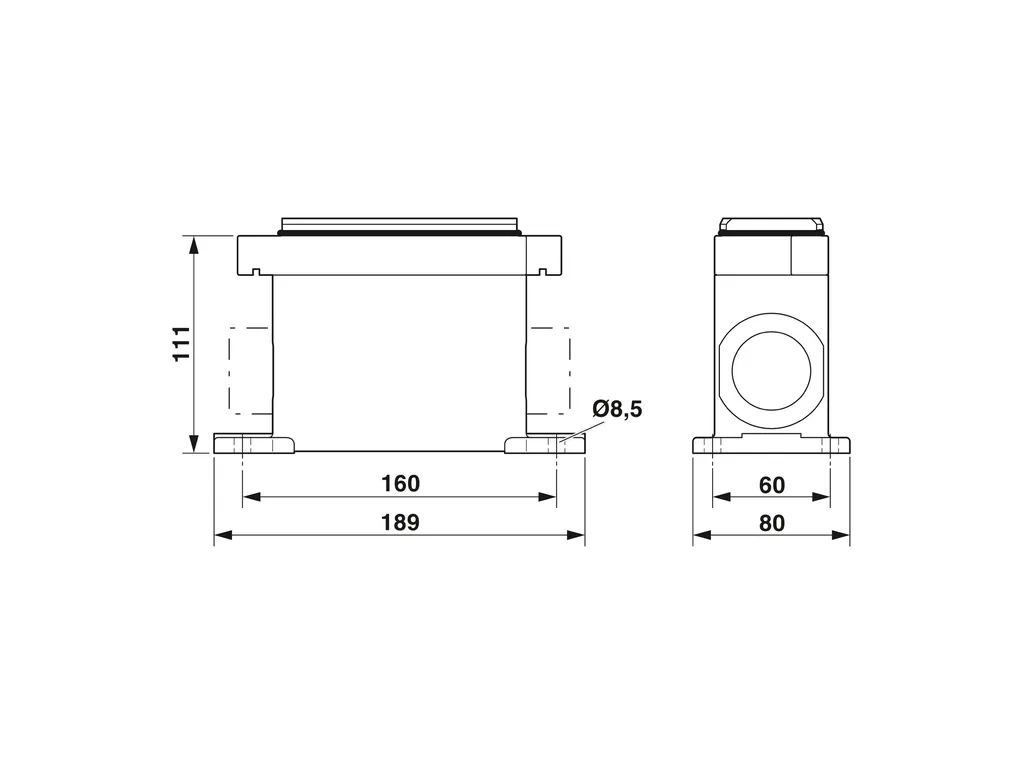

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e9f0512aae899a49836f72408733c4a5/-S204x204-FJPG Width: 80 mm Height: 111 mm Length: 189 mm Drill hole distance, horizontal: 160 mm Drill hole distance, vertical: 60 mm Hole diameter: 8.5 mm |
| Material specifications | Seal material: NBR Housing surface material: Powder-coated, black Impact strength: IK09 Housing material: die-cast aluminum |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (0.5bar / 24h) IP69 (ISO20653:2013-02) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
| Mechanical properties | Mechanical data Type of the screw connection: 2x M40 Locking type: Nut |
| ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
| ETIM | ETIM 9.0: EC000437 |
| UNSPSC | UNSPSC 21.0: 31261500 |
